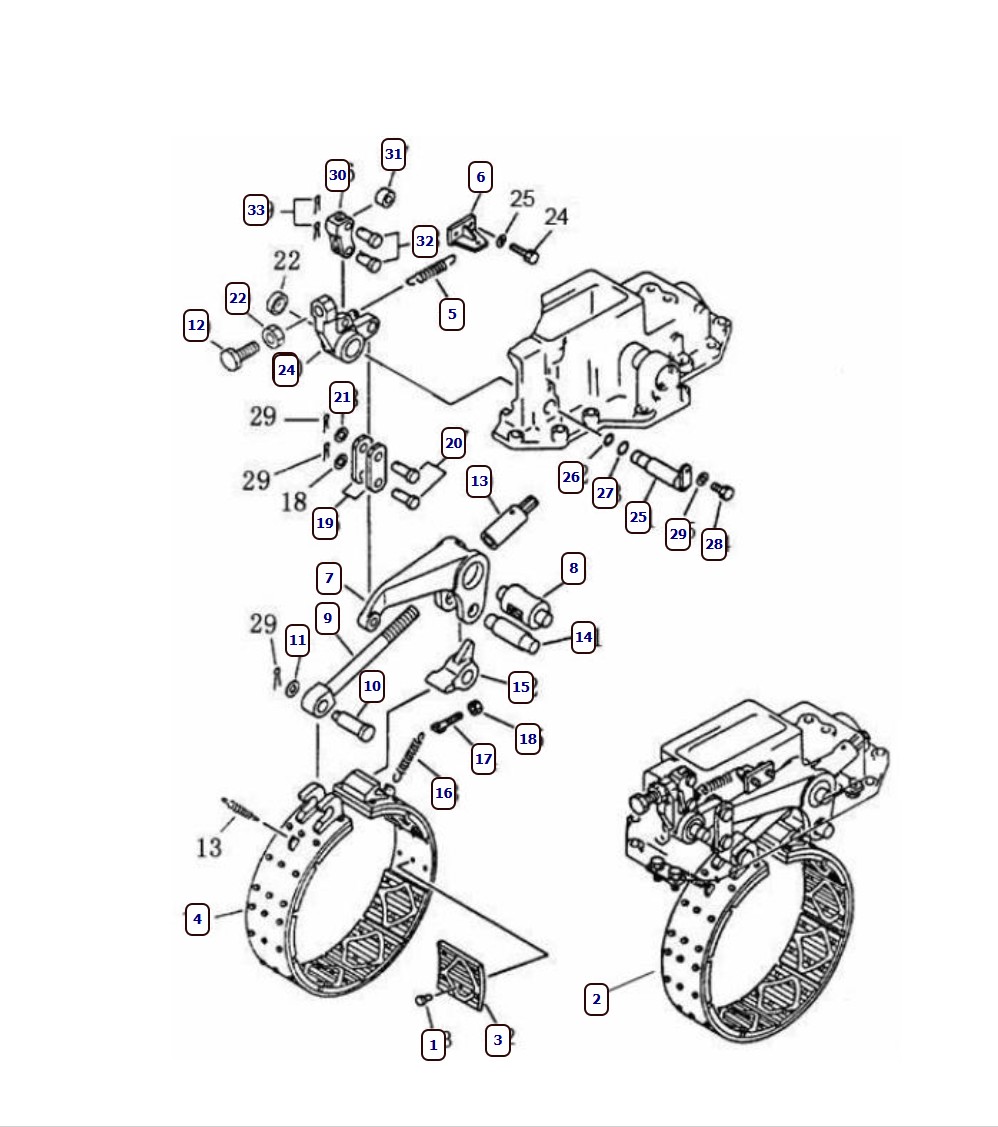

| ID | Part number | Name |
| 1 | 04412-00512 | rivet |
| 2 | 10Y-17-01000 | brake band |
| 3 | 10Y-17-01001 | brake lining |
| 4 | 10Y-17-01100 | brake band |
| 5 | 16Y-17-00005 | spring |
| 6 | 16Y-17-00008 | base plate |
| 7 | 16Y-17-00024 | lever |
| 8 | 16Y-17-00030 | pin |
| 9 | 10Y-17-00011 | adjusting bolt |
| 10 | 10Y-17-00006 | pin |
| 11 | 01640-21626 | Washer 16 |
| 12 | 16Y-17-00002 | bolt |
| 13 | 16Y-17-06000 | lock nut |
| 14 | 16Y-17-00032 | shaft |
| 15 | 16Y-17-00018 | tip |
| 16 | 10Y-17-00007 | spring |
| 17 | 10Y-17-00003 | bolt |
| 18 | 01580-01008 | M10 nut |
| 19 | 16Y-17-00023 | butt strap |
| 20 | 04205-01848 | cylindrical pin |
| 21 | 16Y-17-00027 | washer |
| 22 | 01583-52012 | M20 x 1.5 nut |
| 23 | 16Y-17-00019 | right lever |
| 24 | 16Y-17-00020 | left lever |
| 25 | 16Y-17-02000 | shaft |
| 26 | 07000-13022 | O-ring |
| 27 | 07000-13025 | O-ring |
| 28 | 01010-51025 | M10 x 25 bolt |
| 29 | 01643-31032 | Washer 10 |
| 30 | 16Y-17-00026 | fork plate |
| 31 | 16Y-17-00031 | roller |
| 32 | 04205-01640 | cylindrical pin |
| 33 | 04050-14028 | cotter pin |
