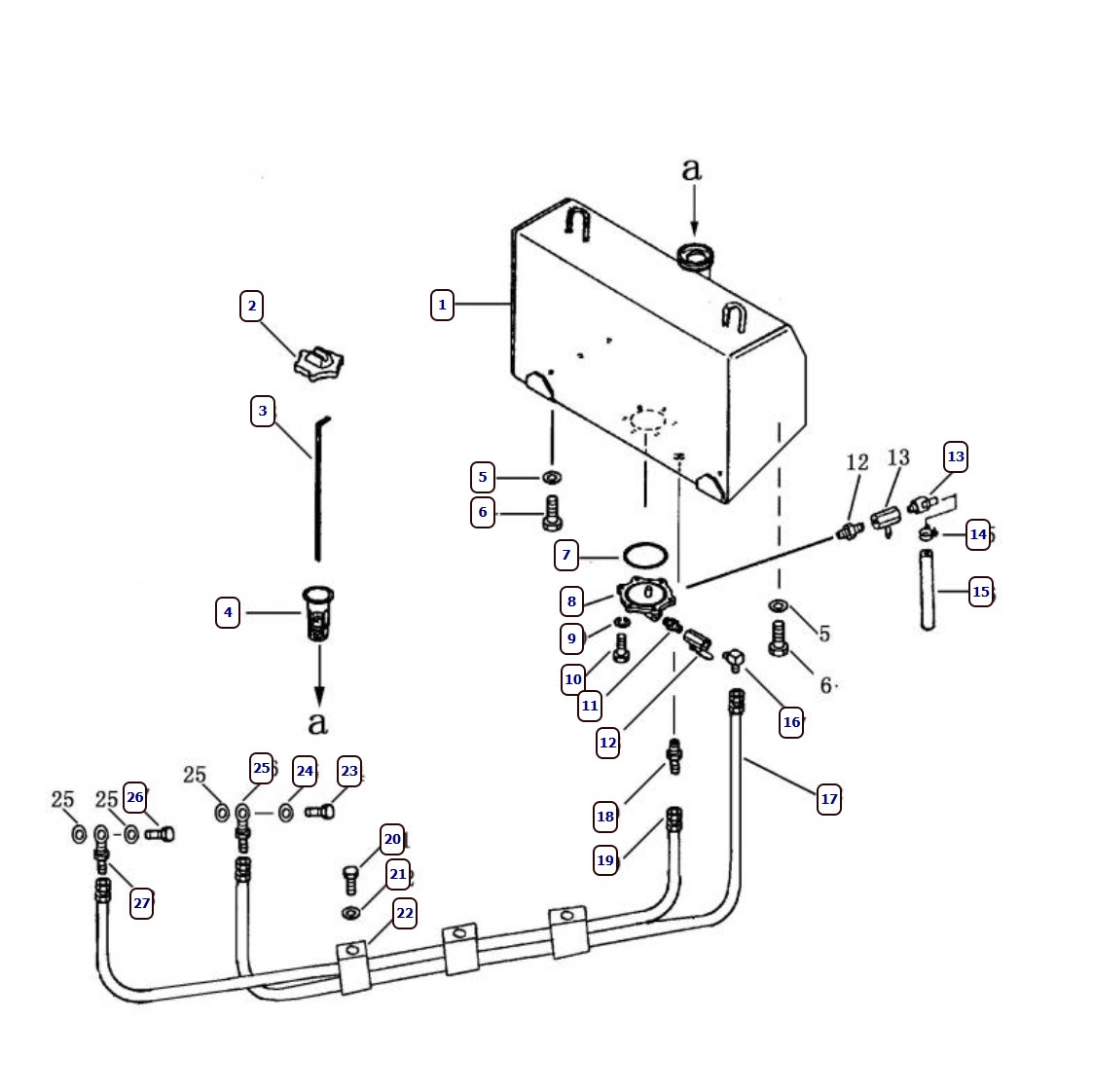

| ID | Part number | Name |
| 1 | 10Y-04B-01000 | Fuel tank |
| 2 | 16Y-04C-02000 | Oil tank cap |
| 3 | 10Y-04B-00003 | Oil dipstick |
| 4 | 07056-18416 | Mesh filter |
| 5 | 01643-31445 | Washer 14 |
| 6 | 01010-51430 | Bolt M14 x30 |
| 7 | 07000-12135 | O-ring |
| 8 | 16Y-04-00006 | Flange |
| 9 | 01643-31032 | Washer 10 |
| 10 | 01010-51025 | Bolt M10 x25 |
| 11 | 16Y-04-00007 | Pipe connector |
| 12 | 07700-40460 | Valve |
| 13 | 16Y-04-00008 | Drain coupling |
| 14 | 07280-01210 | Clamp |
| 15 | 07270-21265 | Hose |
| 16 | 16Y-04-00003 | Pipe connector |
| 17 | 07102-20330 | Hose |
| 18 | 16Y-04-00002 | Pipe connector |
| 19 | 07102-20232 | Hose |
| 20 | 01010-51220 | Bolt M12 x20 |
| 21 | 01643-31232 | Washer 12 |
| 22 | 16Y-04-10000 | Pipe clamp |
| 23 | 10Y-04B-00001 | Hollow bolt |
| 24 | 10Y-04-00005 | Gasket |
| 25 | 16Y-04-40000 | Tube |
| 26 | 10Y-04B-00002 | Hollow bolt |
| 27 | 10Y-04B-02000 | Tube |
