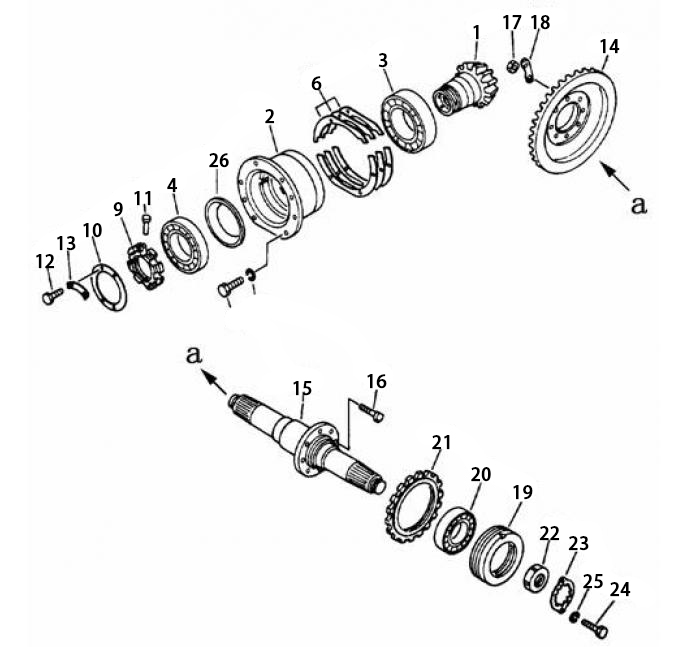

| ID | Part number | Name |
| 1 | 10Y-16-00024 | Gear shaft |
| 2 | 10Y-16-00029 | Bearing cage |
| 3 | GB297-32218 | Tapered roller bearing |
| 4 | GB297-30217 | Tapered roller bearing |
| 5 | 10Y-16-00030 | Adjusting shim |
| 6 | 10Y-16-00031 | Adjusting shim |
| 7 | 01010-51235 | Bolt M12x35 |
| 8 | 01642-21216 | Washer 12 |
| 9 | 10Y-16-00025 | Lock nut |
| 10 | 10Y-16-00026 | Ring |
| 11 | 10Y-16-00023 | Pin |
| 12 | 01010-50610 | Bolt M6x10 |
| 13 | 10Y-16-00027 | Locking plate |
| 14 | 10Y-16-00021 | Main drive gear |
| 15 | 10Y-16-00005 | Horizontal shaft |
| 16 | 10Y-16-00020 | Bolt |
| 17 | 01582-01613 | Nut M16x1.5 |
| 18 | 10Y-16-00022 | Plate |
| 19 | 10Y-16-00018 | Bearing housing |
| 20 | GB297-32215 | Tapered roller bearing |
| 21 | 10Y-16-00019 | Adjusting nut |
| 22 | 10Y-16-00004 | Nut |
| 23 | 10Y-16-00003 | Locking plate |
| 24 | 01252-71020 | Bolt M10x20 |
| 25 | 01642-21016 | Washer 10 |
| 26 | 10Y-16-00028 | Floating seal |
