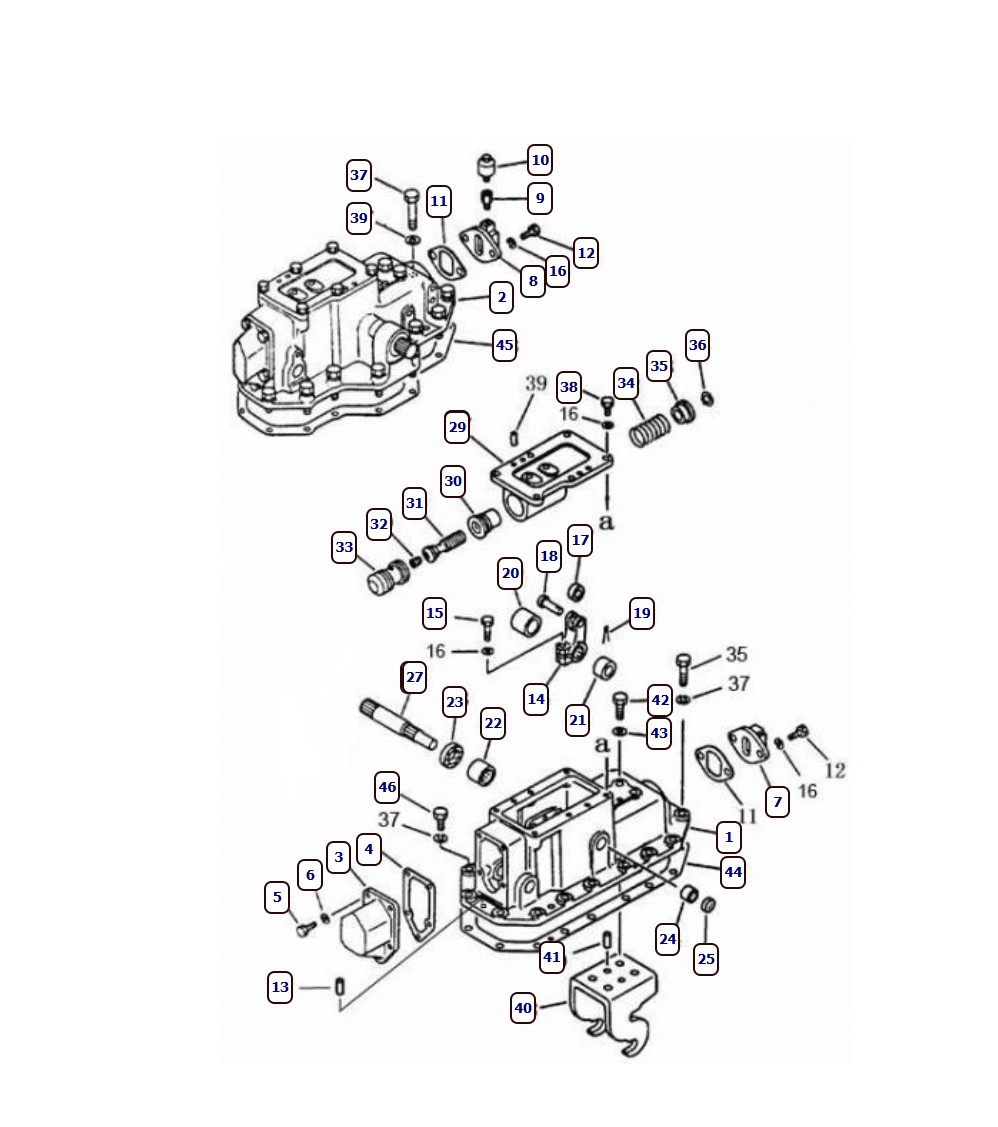

| ID | Part number | Name |
| 1 | 10Y-17-00005 | left cover |
| 2 | 10Y-17-00004 | right cover |
| 3 | 16Y-17-00001 | coating |
| 4 | 16Y-17-00003 | pad |
| 5 | 01010-51025 | Bolt M10 x 25 |
| 6 | 01643-31032 | Washer 10 |
| 7 | 16Y-17-03000 | rear cover |
| 8 | 10Y-17-02000 | right cover |
| 9 | 10Y-17-00009 | breather |
| 10 | 07030-00252 | breather |
| 11 | 16Y-17-00012 | pad |
| 12 | 01010-51225 | Bolt M12 x 25 |
| 13 | 04020-01024 | cylindrical pin |
| 14 | 16Y-17-00014 | lever |
| 15 | 01010-51245 | Bolt M12 x 45 |
| 16 | 01643-31232 | Washer 12 |
| 17 | 16Y-17-00031 | roller |
| 18 | 04205-01638 | cylindrical pin |
| 19 | 04050-14028 | split pin |
| 20 | 16Y-17-00015 | filter |
| 21 | 16Y-17-00013 | filter |
| 22 | GB290-HK3520 | needle roller bearing with stamped outer ring |
| 23 | HG4/692-SD35*56*12 | seal |
| 24 | GB290-HK2516 | needle roller bearing with stamped outer ring |
| 25 | 07046-23016 | plug |
| 26 | 10Y-17-00002 | right shaft |
| 27 | 10Y-17-00010 | left shaft |
| 28 | 16Y-17-00010 | right valve |
| 29 | 16Y-17-00028 | left valve |
| 30 | 16Y-17-00007 | bush |
| 31 | 16Y-17-00006 | piston |
| 32 | 07043-70108 | threaded plug |
| 33 | 16Y-17-00004 | piston |
| 34 | 16Y-17-00029 | spring |
| 35 | 16Y-17-00009 | spring seat |
| 36 | 04064-02512 | retaining ring |
| 37 | 01010-51440 | Bolt M14 x 40 |
| 38 | 01010-51230 | Bolt M12 x 30 |
| 39 | 01643-31445 | Washer 14 |
| 40 | 16Y-17-00011 | bracket |
| 41 | 04020-01228 | cylindrical pin |
| 42 | 01010-51645 | Bolt M16 x 25 |
| 43 | 01643-31645 | Washer 16 |
| 44 | 10Y-17-00008 | left gasket |
| 45 | 10Y-17-00001 | right gasket |
| 46 | 01010-51455 | Bolt M14 x 55 |
