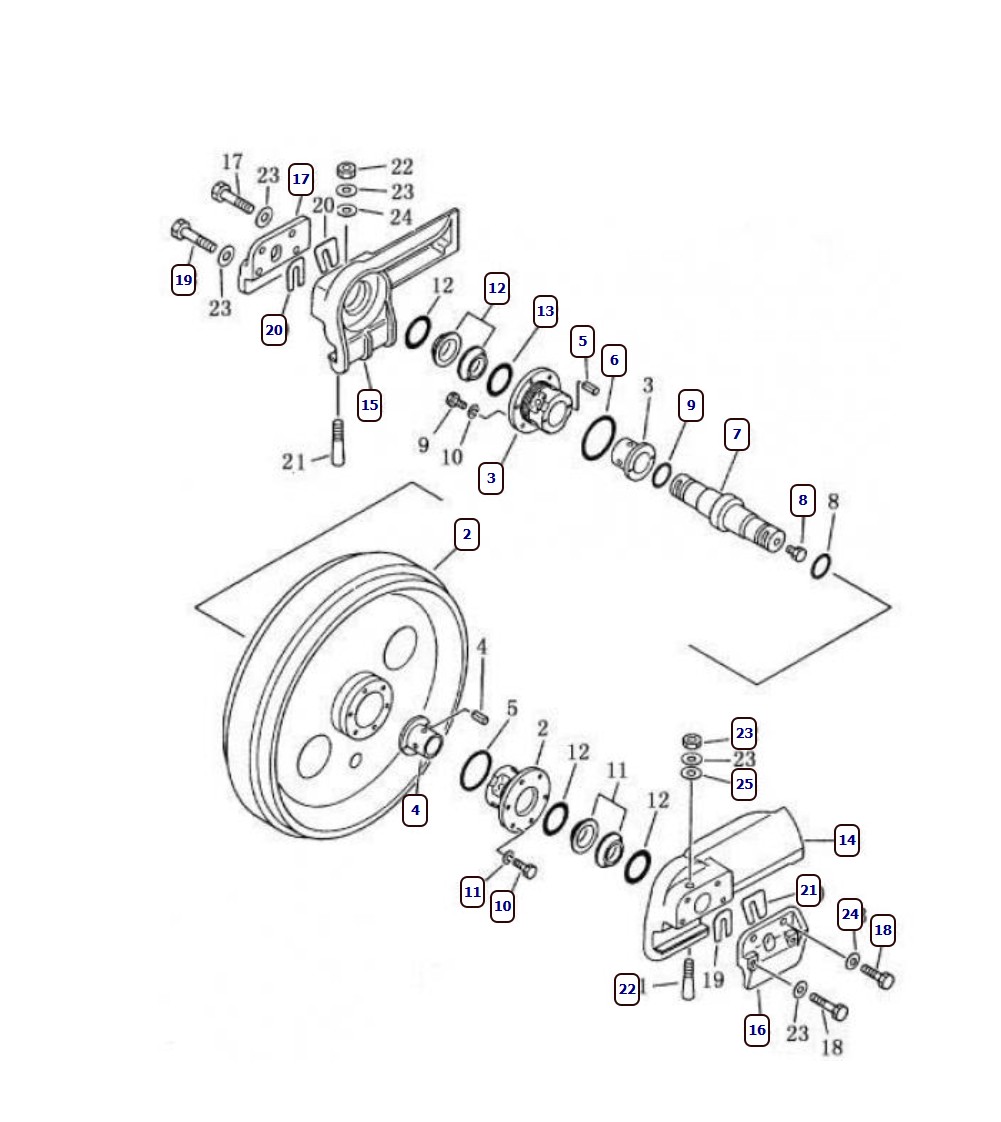

| ID | Part number | Name |
| 1 | 10Y-40-03000 | Guide wheel |
| 2 | 10Y-40-03300 | Guide wheel housing |
| 3 | 10Y-40-03201 | Bushing |
| 4 | 10Y-40-03202 | Bushing |
| 5 | 04025-00512 | Cylindrical pin |
| 6 | 07000-12095 | O-ring |
| 7 | 10Y-40-03004 | Shaft |
| 8 | 07052-31624 | Threaded plug |
| 9 | 07000-13048 | O-ring |
| 10 | 01010-51025 | Bolt M10x25 |
| 11 | 01643-31032 | Washer 10 |
| 12 | 10Y-40-03003 | Floating seal |
| 13 | 10Y-40-03002 | O-ring |
| 14 | 10Y-40-03100 | Cover |
| 15 | 10Y-40-03400 | Cover |
| 16 | 10Y-40-03001 | Left plate |
| 17 | 10Y-40-03005 | Right plate |
| 18 | 01010-51645 | Bolt M16x25 |
| 19 | 01010-51665 | Bolt M16x65 |
| 20 | 10Y-40-03006 | Adjustable shim |
| 21 | 10Y-40-03007 | Adjusting shim |
| 22 | 16Y-40-03001 | Fastener |
| 23 | 01582-01613 | Nut M16x1.5 |
| 24 | 01643-31645 | Washer 16 |
| 25 | 01640-21626 | Washer 16 |
