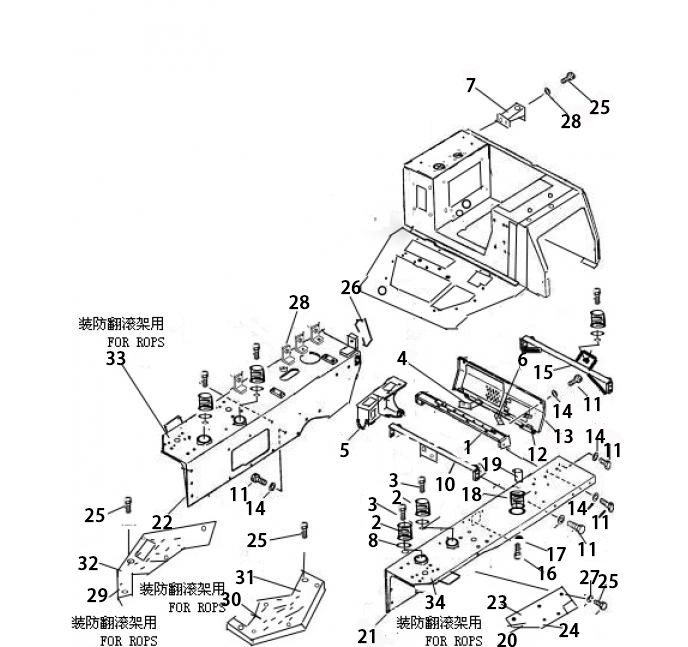

| ID | Part number | Name |
| 1 | 10Y-51B-11000 | bracket |
| 2 | 23Y-51B-24000 | seat damper |
| 3 | 01011-52025 | Bolt M20 x 125 |
| 4 | 10Y-51B-03000 | plate |
| 5 | 10Y-51B-10000 | seat |
| 6 | 10Y-51B-06000 | plate |
| 7 | 10Y-51B-13000 | plate |
| 8 | 23Y-51B-00010 | washer |
| 9 | 01580-02016 | Nut M20 |
| 10 | 10y-51b-16000 | bracket |
| 11 | 01010-51445 | Bolt M14 x 45 |
| 12 | 10Y-51B-04000 | cover |
| 13 | 10Y-51B-05000 | cover |
| 14 | 01643-31445 | Washer 14 |
| 15 | 10Y-51B-12000 | pan |
| 16 | 01010-51260 | Bolt M12 x 60 |
| 17 | 111-51-00012 | top cover |
| 18 | 111-51-00011 | shock absorber |
| 19 | 10Y-51B-00002 | wing |
| 20 | 10Y-51-00003 | plate |
| 21 | 10Y-51B-07000 | wing, left |
| 22 | 10Y-51B-01000 | wing, right |
| 23 | 10Y-51-00004 | plate |
| 24 | 10Y-51-00005 | plate |
| 25 | 01010-51230 | Bolt M12 x 30 |
| 26 | 16Y-51C-00007 | handrails |
| 27 | 01643-31232 | Washer 12 |
| 28 | 10Y-51B-09000 | seat |
| 29 | 10Y-51B-26000 | cover, right |
| 30 | 10Y-51B-25000 | cover, left |
| 31 | 10Y-51B-20000 | cover |
| 32 | 10Y-51B-21000 | cover |
| 33 | 10Y-51B-23000 | wing, right |
| 34 | 10Y-51B-24000 | wing, left |
