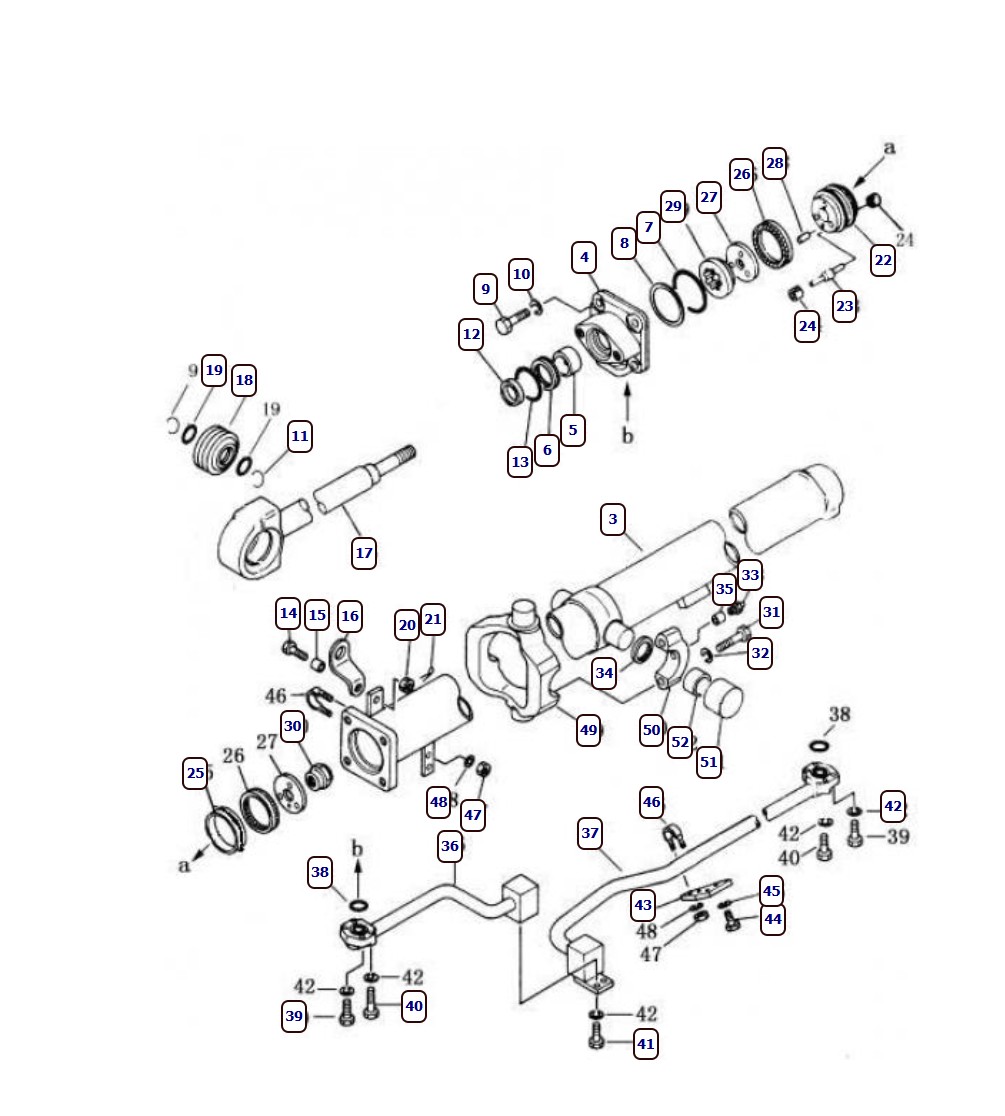

| ID | Part number | Name |
| 1 | 10Y-62-04000 | Blade lift cylinder, right |
| 2 | 10Y-62-10000 | Blade lift cylinder, right |
| 3 | 10Y-62-04140 | Cylinder body |
| 4 | 10Y-62-04104 | Cover |
| 5 | 10Y-62-04103 | Bushing |
| 6 | 10Y-62-04130 | Ring |
| 7 | 07000-12085 | O-ring |
| 8 | 07146-02086 | Protective ring |
| 9 | 01010-51645 | Bolt M16x25 |
| 10 | 01643-31645 | Washer 16 |
| 11 | 04065-09030 | Lock ring |
| 12 | 10Y-62-04101 | Ring |
| 13 | 10Y-62-04102 | Ring |
| 14 | 01012-51035 | Bolt M10x35 |
| 15 | 10Y-62-04004 | Washer |
| 16 | 10Y-62-04003 | Plate |
| 17 | 10Y-62-04120 | Tip |
| 18 | 07137-04006 | Radial thrust bearing |
| 19 | 07000-13040 | O-ring |
| 20 | 01590-31012 | Nut M10 |
| 21 | 04050-02018 | Cotter pin |
| 22 | 10Y-62-04110 | Piston |
| 23 | 16Y-62-50803 | Valve body |
| 24 | 16Y-62-50802 | Valve support |
| 25 | 10Y-62-04150 | Ring |
| 26 | 10Y-62-04107 | Ring |
| 27 | 10Y-62-04106 | Plate |
| 28 | 16Y-62-50804 | Pin |
| 29 | 10Y-62-04105 | Bushing |
| 30 | 10Y-62-04108 | Nut |
| 31 | 01010-51470 | Bolt M14x70 |
| 32 | 01643-31445 | Washer 14 |
| 33 | 07020-01021 | Lubricator M10x1 |
| 34 | 07145-00045 | Dust protection ring |
| 35 | 170-70-15190 | Shaft |
| 36 | 10Y-62-04300 | Tube |
| 37 | 10Y-62-04200 | Tube |
| 38 | 07000-13030 | O-ring |
| 39 | 01010-81035 | Bolt M10x35 |
| 40 | 01010-80850 | Bolt M8x50 |
| 41 | 01010-50820 | Bolt M8x20 |
| 42 | 01643-30823 | Washer 8 |
| 43 | 10Y-62-04001 | Plate |
| 44 | 01010-31025 | Bolt |
| 45 | 01602-01030 | Washer 10 |
| 46 | 07283-22738 | Clamp |
| 47 | 01599-01011 | Nut M10x1.25 |
| 48 | 01643-31032 | Washer 10 |
| 49 | 10Y-62-04002 | Support ring |
| 50 | 10Y-50-00005 | Cover |
| 51 | 10Y-50-00003 | Bushing |
| 52 | 10Y-50-00004 | Bushing |
