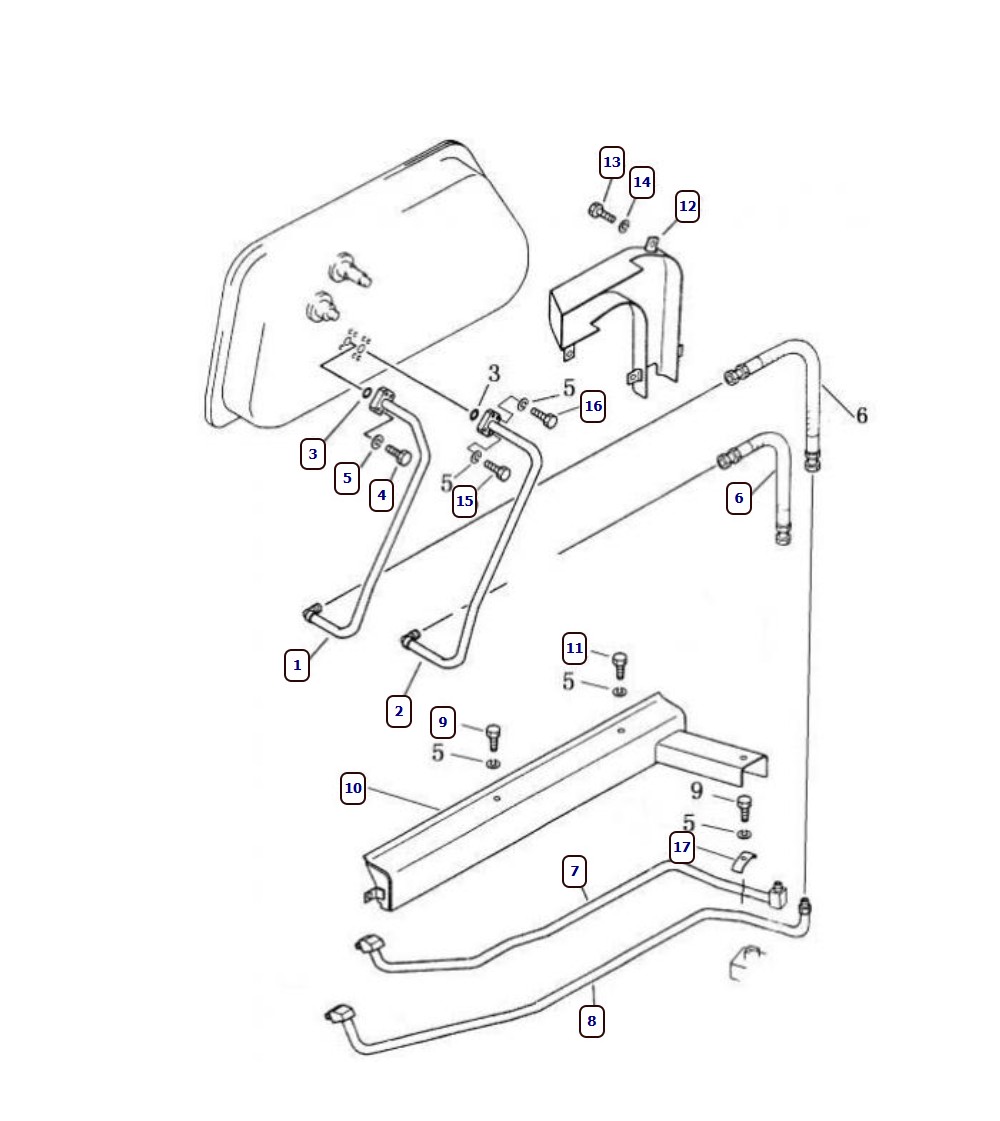

| ID | Part number | Name |
| 1 | 10Y-63-06000 | Tube |
| 2 | 10Y-63-07000 | Tube |
| 3 | 07000-13038 | O-ring |
| 4 | 01010-51045 | Bolt M10 * 45 |
| 5 | 01643-51032 | Washer 10 |
| 6 | 07108-20405 | Hose |
| 7 | 10Y-63-08000 | Tube |
| 8 | 10Y-63-09000 | Tube |
| 9 | 01010-51025 | Bolt M10 * 25 |
| 10 | 10B-63-09000 | Shield |
| 11 | 01010-51020 | Bolt M10 * 20 |
| 12 | 10B-63-10000 | Shield |
| 13 | 01010-51230 | Bolt M12 * 30 |
| 14 | 01643-51232 | Washer 12 |
| 15 | 01010-51060 | Bolt M10 * 60 |
| 16 | 01010-51050 | Bolt M10 * 50 |
| 17 | 10B-63-13000 | Clamp |
