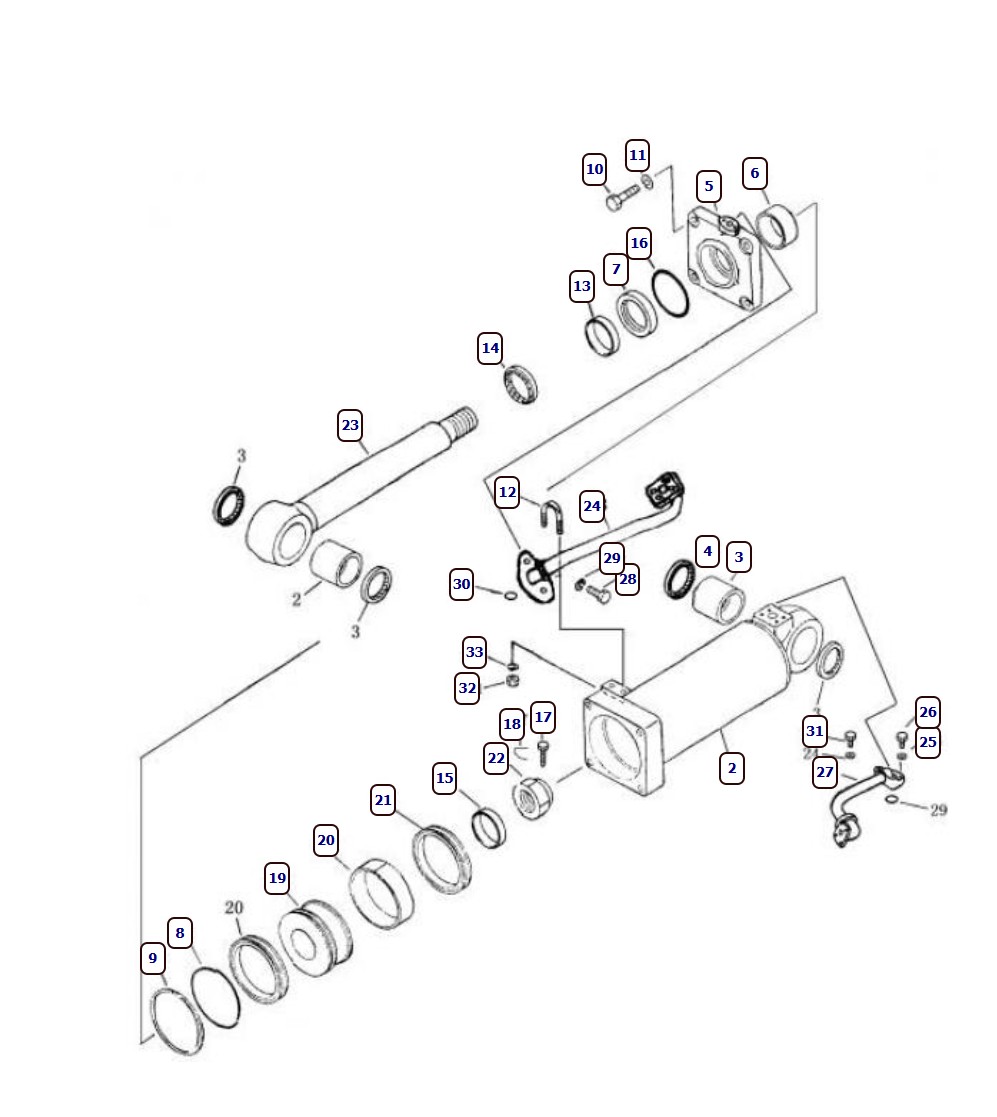

| ID | Part number | Name |
| 1 | 10Y-64-05000 | ripper cylinder assembly |
| 2 | 10Y-64-05200 | cylinder body |
| 3 | 10Y-64-05002 | bushing |
| 4 | 10Y-64-05500 | ring |
| 5 | 10Y-64-05001 | sleeve, manual |
| 6 | 16Y-84-62005 | block |
| 7 | 16Y-84-62400 | seal |
| 8 | 07000-15150 | O-ring |
| 9 | 07146-05152 | retaining ring |
| 10 | 01010-52770 | Bolt M27 x70 |
| 11 | 01643-32780 | Washer 27 |
| 12 | 07283-22738 | clamp |
| 13 | 16Y-84-62006 | ring |
| 14 | 16Y-84-62007 | ring |
| 15 | 16Y-84-62003 | washer |
| 16 | 07000-12055 | O-ring |
| 17 | 01322-40820 | fastening screw |
| 18 | 04059-01025 | steel wire |
| 19 | 16Y-84-62002 | piston |
| 20 | 16Y-63-13500 | ring |
| 21 | 16Y-63-13008 | ring |
| 22 | 16Y-84-62001 | nut |
| 23 | 10Y-64-05100 | piston tip |
| 24 | 10Y-64-05300 | tube |
| 25 | 01643-30823 | Washer 8 |
| 26 | 01010-50840 | Bolt M8 x40 |
| 27 | 10Y-64-05400 | tube |
| 28 | 01010-51230 | Bolt M12 x30 |
| 29 | 01643-31232 | Washer 12 |
| 30 | 07000-13030 | O-ring |
| 31 | 01010-50850 | Bolt M8 x50 |
| 32 | 01599-01011 | Nut M10 x1.25 |
| 33 | 01643-31032 | Washer 10 |
