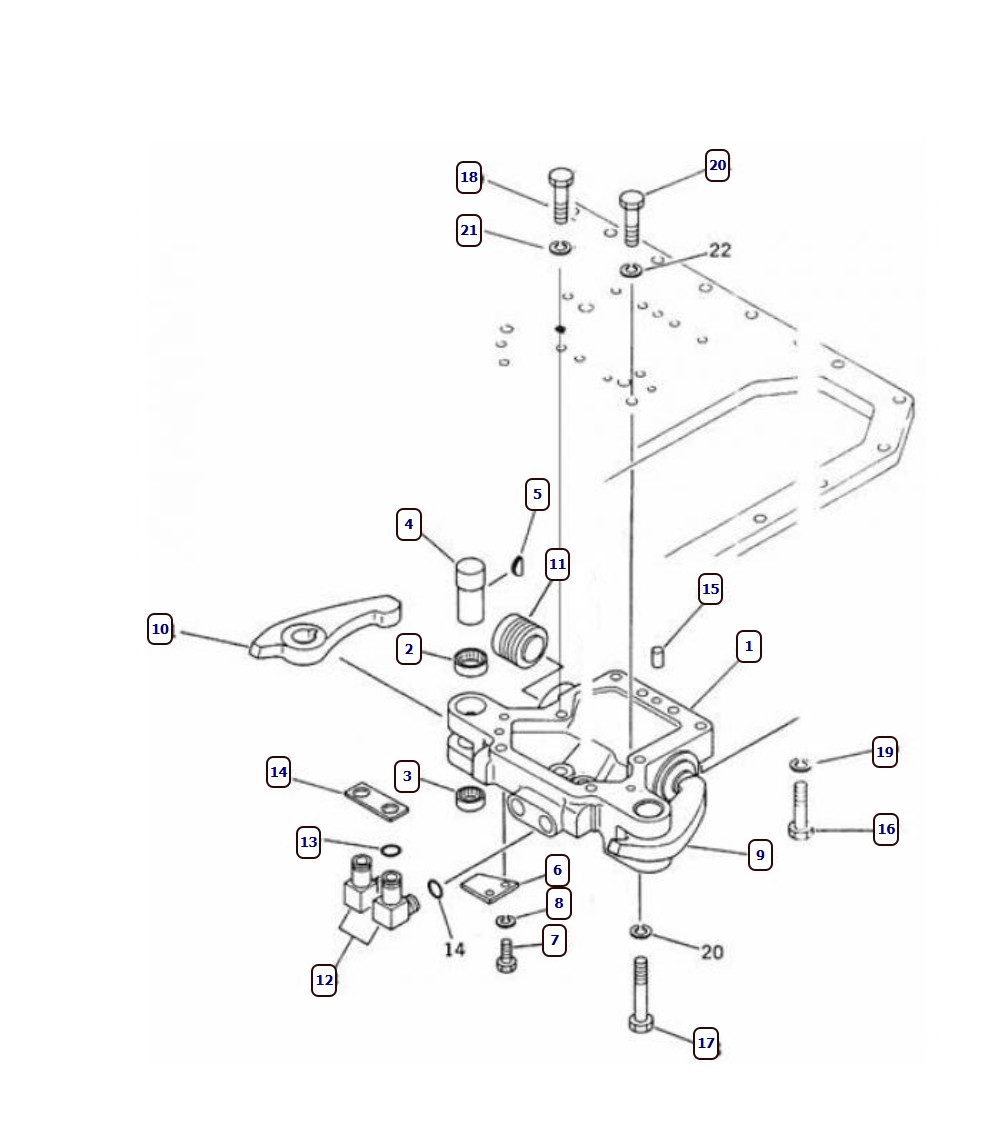

| ID | Part number | Name |
| 1 | 10Y-76-13002 | Cylinder body |
| 2 | GB290-HK3020 | Needle roller bearing with stamped outer ring |
| 3 | GB290-HK2520 | Needle roller bearing with stamped outer ring |
| 4 | 10Y-76-13005 | Pin |
| 5 | 04010-00522 | Segment key |
| 6 | 10Y-76-13004 | Plate |
| 7 | 01010-51020 | Bolt M10*20 |
| 8 | 01643-31032 | Washer 10 |
| 9 | 10Y-76-13003 | Cheek, left |
| 10 | 10Y-76-13001 | Cheek, right |
| 11 | 10Y-76-13008 | Piston |
| 12 | 10Y-76-13006 | Connection |
| 13 | 07000-12018 | O-ring |
| 14 | 10Y-76-13007 | Plate |
| 15 | 04020-01228 | Cylindrical pin |
| 16 | 01010-51260 | Bolt M12*60 |
| 17 | 01010-51275 | Bolt M12*75 |
| 18 | 01010-51465 | Bolt M14*65 |
| 19 | 01643-31232 | Washer 12 |
| 20 | 01010-51445 | Bolt M14*45 |
| 21 | 01643-31445 | Washer 14 |
