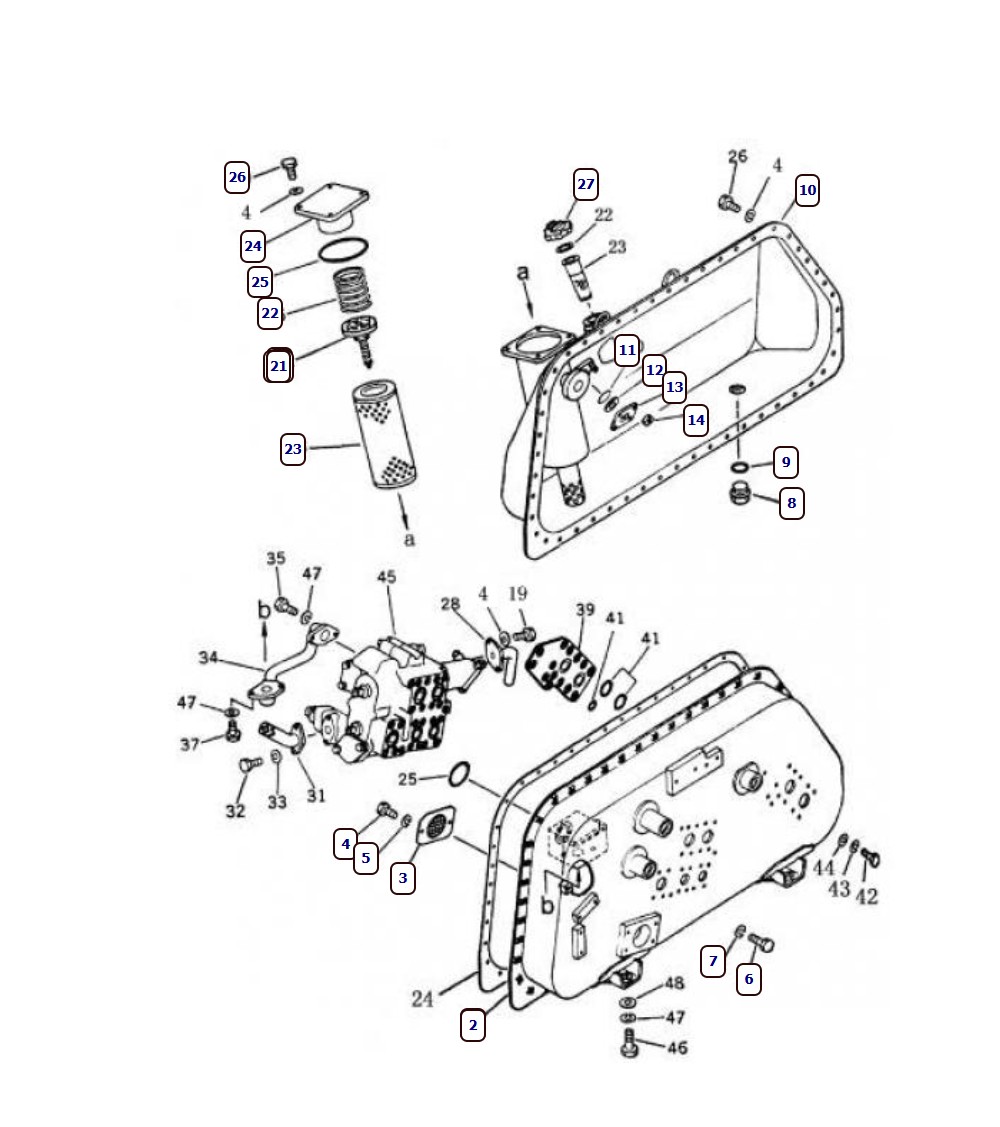

| ID | Part number | Name |
| 1 | 16Y-60-00000 | Working tank |
| 2 | 16Y-60-02000 | Tank body |
| 3 | 16Y-60-14000 | Screen |
| 4 | 01010-51016 | M10 x 16 Bolt |
| 5 | 01602-21030 | Washer 10 |
| 6 | 01010-51225 | M12 x 25 Bolt |
| 7 | 01602-21236 | Washer 12 |
| 8 | 155-60-12500 | Oil drain valve assembly |
| 9 | 07000-13025 | O-ring |
| 10 | 16Y-60-03000 | Oil tank cover |
| 11 | 07715-00651 | Casing |
| 12 | 07715-11257 | Ring |
| 13 | 07715-21074 | Rear cover |
| 14 | 01598-11011 | M10 Nut |
| 15 | 01590-30809 | M8 Nut |
| 16 | 01640-21223 | Washer 12 |
| 17 | 04050-12016 | Cotter pin |
| 18 | 16Y-60-00004 | Seal |
| 19 | 16Y-60-00008 | Bolt |
| 20 | 16Y-60-00009 | Spring |
| 21 | 16Y-60-00010 | Spring base |
| 22 | 16Y-60-00005 | Spring |
| 23 | 16Y-60-13000 | Filter |
| 24 | 16Y-60-01000 | Cover |
| 25 | 07000-12125 | O-ring |
| 26 | 01010-51030 | M10 x 30 Bolt |
| 27 | 07051-20000 | Filler hole plug |
