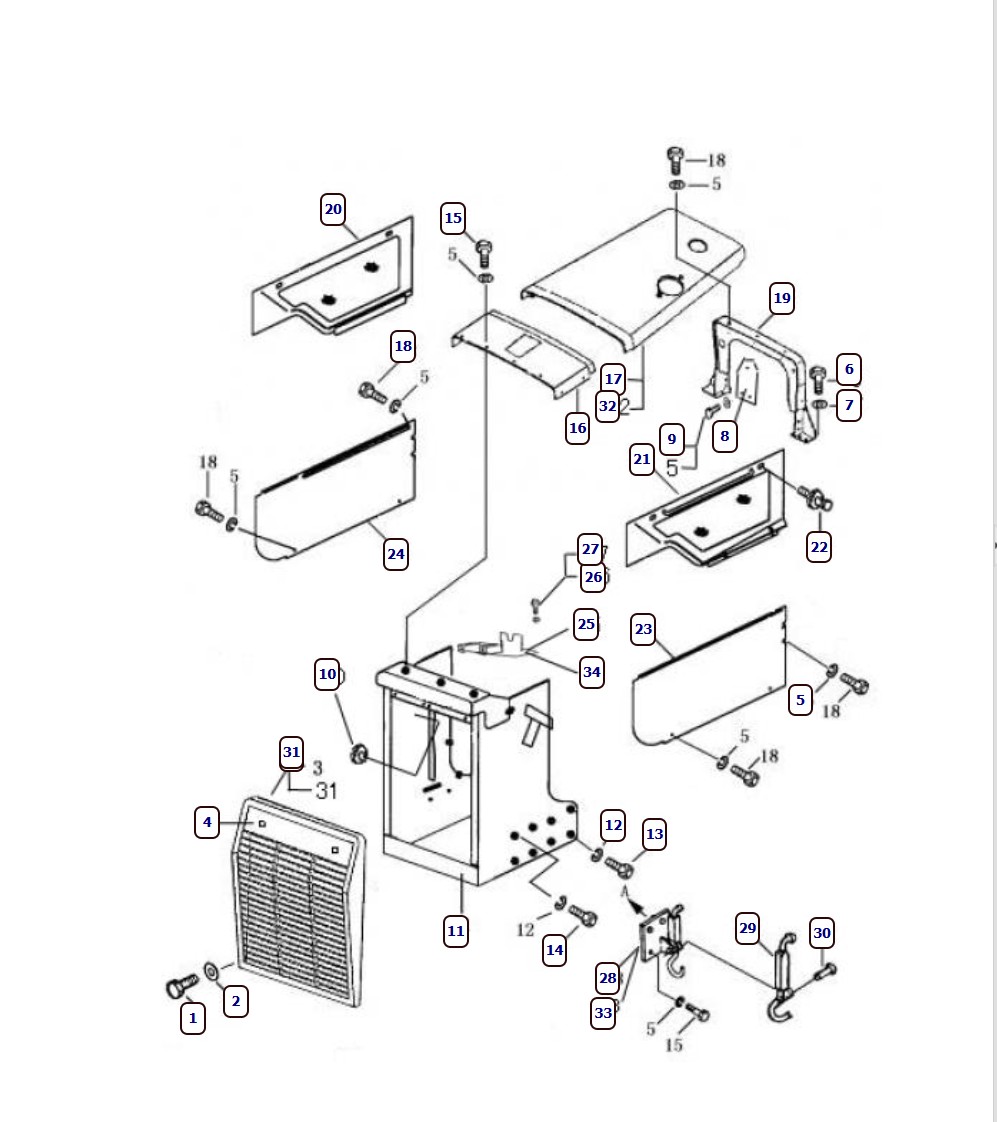

| ID | Part number | Name |
| 1 | 01010-51640 | Bolt M16×40 |
| 2 | 01643-31645 | Washer 16 |
| 3 | 16Y-50C-12000 | Radiator guard |
| 4 | 23Y-50C-00003 | Cap |
| 5 | 01643-31232 | Washer 12 |
| 6 | 01010-51440 | Bolt M14×40 |
| 7 | 01643-31445 | Washer 14 |
| 8 | 16Y-50C-00002 | Plate |
| 9 | 01010-51230 | Bolt M12×30 |
| 10 | 16Y-50C-00004 | Plug |
| 11 | 16Y-50C-13000 | Cover |
| 12 | 01643-32060 | Washer 20 |
| 13 | 01011-52030 | Bolt M20×130 |
| 14 | 01011-52025 | Bolt M20×125 |
| 15 | 01010-51220 | Bolt M12×20 |
| 16 | 16Y-50C-04000 | Top cover |
| 17 | 16Y-50C-05000 | Top cover |
| 18 | 01010-51235 | Bolt M12×35 |
| 19 | 16Y-50C-10000 | Frame |
| 20 | 16Y-50C-07000 | Right side guard |
| 21 | 16Y-50C-06000 | Left side guard |
| 22 | 16Y-50C-17000 | Bolt |
| 23 | 16Y-50C-08000 | Left side cover |
| 24 | 16Y-50C-09000 | Right side cover |
| 25 | 16Y-50C-14000 | Right support |
| 26 | 01010-50820 | Bolt M8×20 |
| 27 | 01602-00825 | → |
| 28 | 16Y-50-13000 | Fastener |
| 29 | 16Y-50-15000 | Hook |
| 30 | 04412-00517 | Rivet |
| 31 | 16Y-50C-16000 | Protective grille |
| 32 | 16Y-50C-11000 | Top cover |
| 33 | 16Y-50-14000 | Fastener |
| 34 | 16Y-50C-15000 | Left support |
