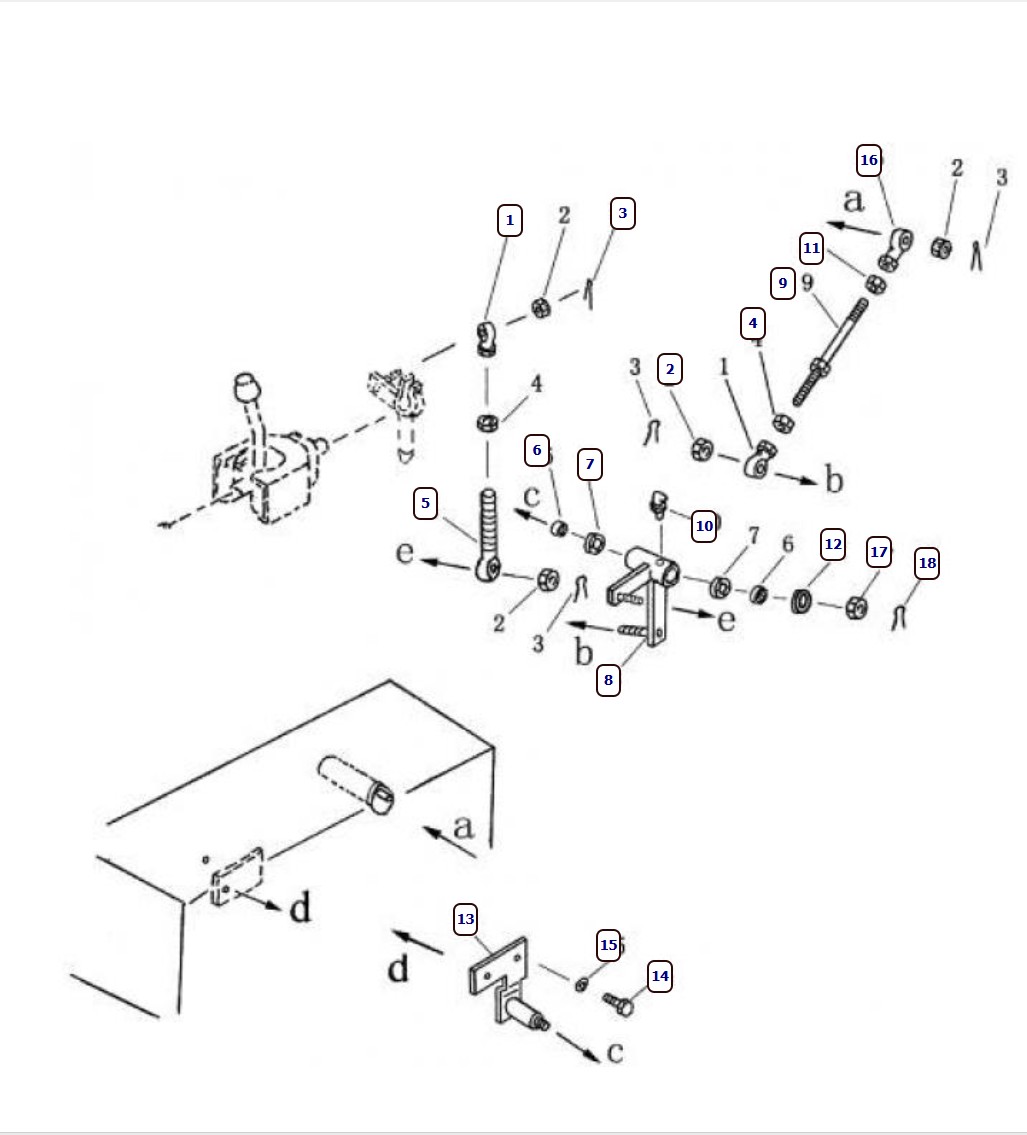

| ID | Part number | Name |
| 1 | 04250-41056 | hinge bearing |
| 2 | 01593-31008 | Nut M10 * 1.25 |
| 3 | 04050-12018 | split pin |
| 4 | 01582-11008 | Nut M10 * 1.25 |
| 5 | 04252-01061 | hinge bearing |
| 6 | 06122-02004 | dust seal |
| 7 | GB290-HK2012 | needle roller bearing with stamped outer ring |
| 8 | 16Y-87C-03000 | fastener |
| 9 | 04248-31016 | lever |
| 10 | 07021-01090 | 90° lubricator M10 * 1 |
| 11 | 01508-41006 | Nut M10 * 1.25 |
| 12 | 16Y-87C-00001 | seal |
| 13 | 16Y-87C-08000 | support |
| 14 | 01010-51225 | Bolt M12 * 25 |
| 15 | 01641-21223 | Washer 12 |
| 16 | 04250-71056 | hinge bearing |
| 17 | 01593-31210 | Nut M12 * 1.5 |
| 18 | 04050-13020 | split pin |
