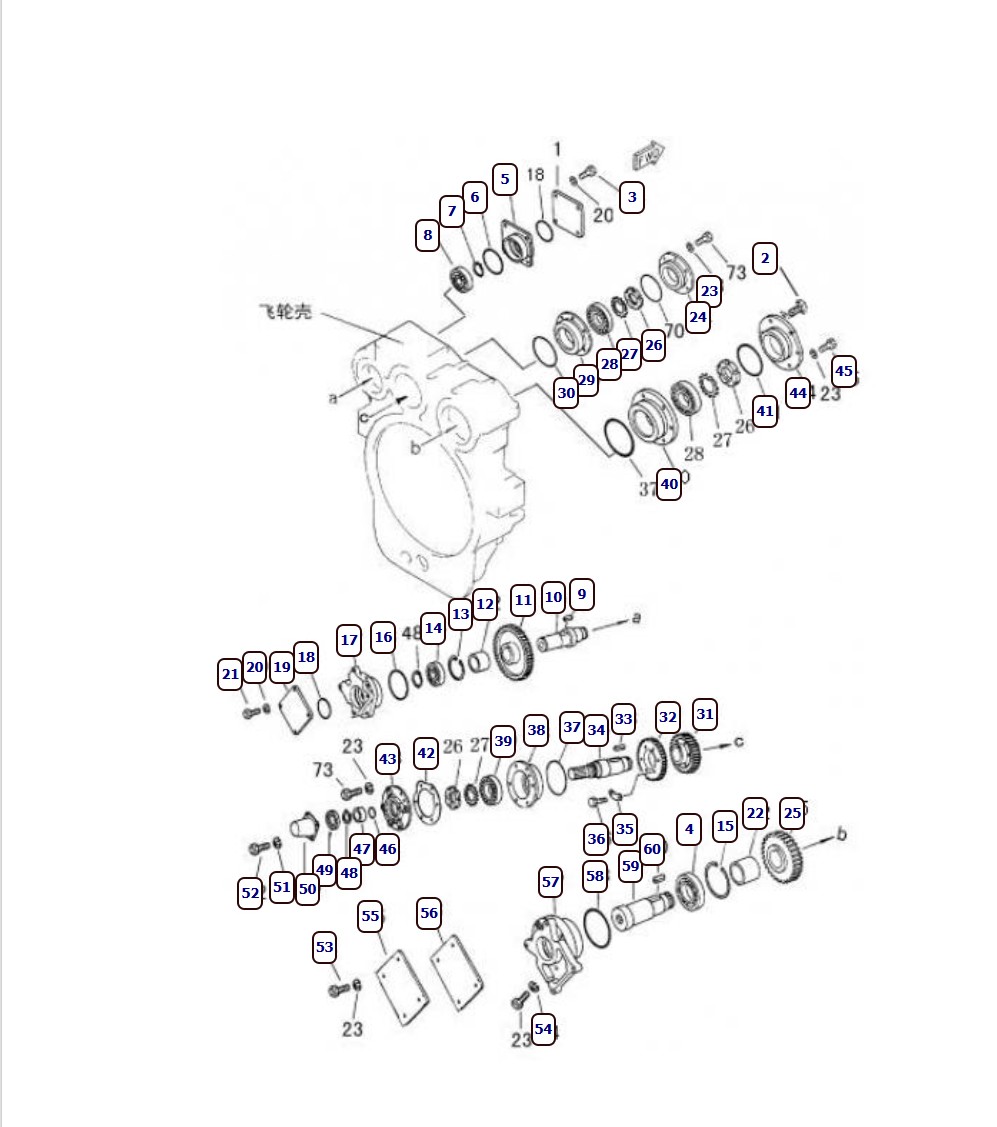

| ID | Part number | Name |
| 1 | 16Y-02A-00016 | Coating |
| 2 | 01010-51235 | Bolt M12 x35 |
| 3 | 01010-51040 | Bolt M10 x40 |
| 4 | GB276-6214 | Deep Groove Ball Bearing |
| 5 | 16Y-02A-00017 | Bearing Housing |
| 6 | 07000-13088 | O-ring |
| 7 | 04064-04018 | Retaining Ring |
| 8 | GB276-6208 | Deep Groove Ball Bearing |
| 9 | 04000-01235 | Parallel Key |
| 10 | 16Y-02A-00015 | Shaft |
| 11 | 16Y-02A-00019 | Gear |
| 12 | 16Y-02A-00020 | Sleeve |
| 13 | 04065-08530 | Retaining Ring |
| 14 | GB276-6209C4 | Deep Groove Ball Bearing |
| 15 | 16Y-02A-00037 | Retaining Ring |
| 16 | 07000-12095 | O-ring |
| 17 | 16Y-02A-00021 | Bearing Housing |
| 18 | 07000-12075 | O-ring |
| 19 | 16Y-02A-00022 | Coating |
| 20 | 01602-21030 | Washer 10 |
| 21 | 01010-51025 | Bolt M10 x25 |
| 22 | 16Y-02A-00036 | Sleeve |
| 23 | 01602-21236 | Washer 12 |
| 24 | 16Y-02A-00013 | Bearing Cover |
| 25 | 16Y-02A-00041 | Gear |
| 26 | 01530-06214 | Nut M62 x2 |
| 27 | 01658-26223 | Washer 62 |
| 28 | GB283-N213C4 | Cylindrical Roller Bearing |
| 29 | 16Y-02A-00012 | Bearing Housing |
| 30 | 07000-13130 | O-ring |
| 31 | 16Y-02A-00011 | Gear |
| 32 | 16Y-02A-00010 | Gear |
| 33 | 04000-01865 | Parallel Key |
| 34 | 16Y-02A-00014 | Shaft |
| 35 | 16Y-02A-00018 | Cushion |
| 36 | 01010-51045 | Bolt M10 x45 |
| 37 | GB3452.1-132*3.55 | O-ring |
| 38 | 16Y-02A-00026 | Bearing Housing |
| 39 | GB276-6213 | Deep Groove Ball Bearing |
| 40 | 16Y-02A-00035 | Bearing Housing |
| 41 | 07000-75110 | O-ring |
| 42 | 16Y-02A-00027 | Gasket |
| 43 | 16Y-02A-00023 | Bearing Cover |
| 44 | 16Y-02A-00034 | Bearing Cover |
| 45 | 01010-51240 | Bolt M12 x40 |
| 46 | 07000-13040 | O-ring |
| 47 | 16Y-02A-00025 | Sleeve |
| 48 | 04064-04518 | Retaining Ring |
| 49 | 07012-00060 | Seal |
| 50 | 16Y-02A-00024 | Coating |
| 51 | 01602-20619 | Washer 6 |
| 52 | 01010-50612 | Bolt M6 x12 |
| 53 | 01010-51230 | Bolt M12 x30 |
| 54 | 01010-51245 | Bolt M12 x45 |
| 55 | 16Y-02A-00039 | Coating |
| 56 | 16Y-02A-00040 | Washer |
| 57 | 16Y-02A-00038 | Bearing Housing |
| 58 | 07000-12135 | O-ring |
| 59 | 16Y-02A-00033 | Shaft |
| 60 | 04000-11850 | Parallel Key |
