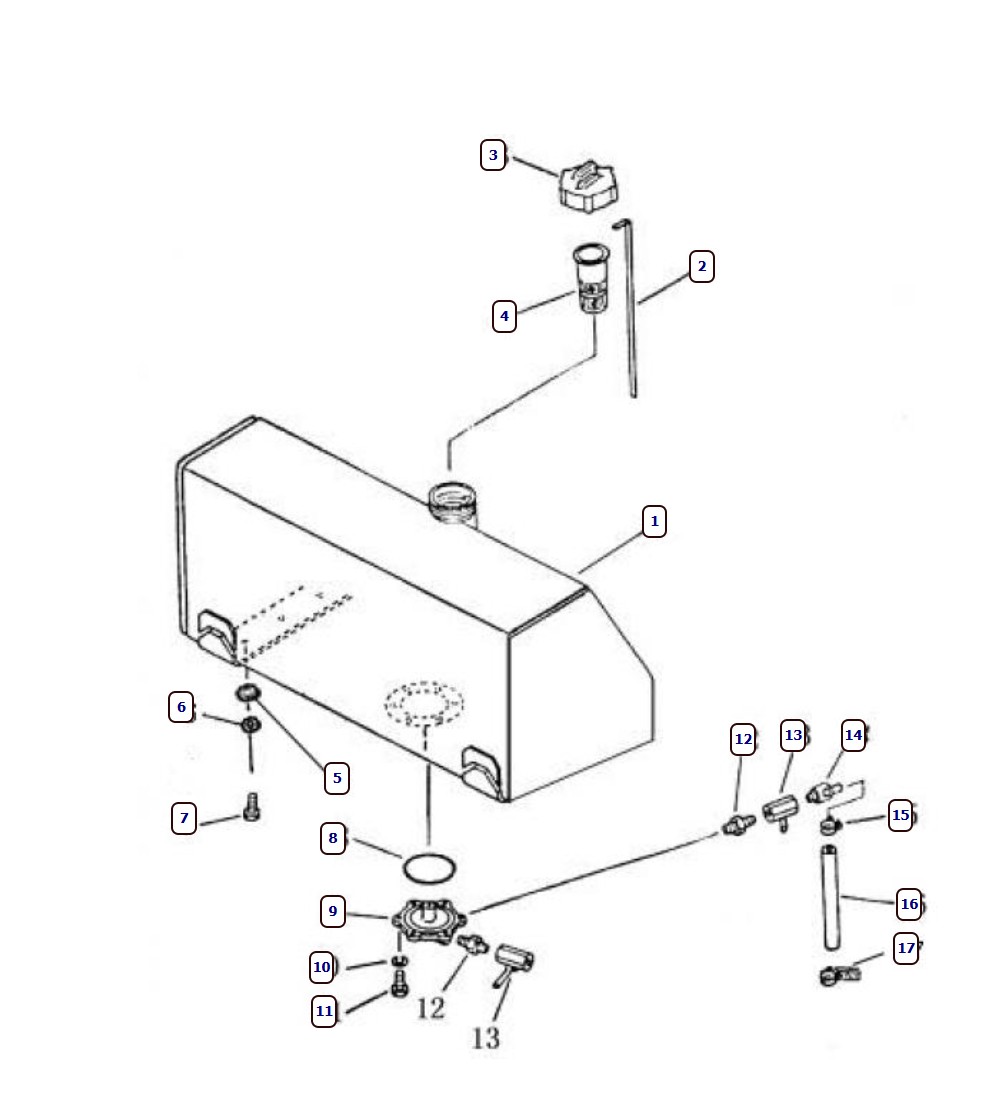

| ID | Part number | Name |
| 1 | 16Y-04C-01000 | Fuel tank |
| 2 | 16Y-04C-00001 | Oil level gauge |
| 3 | 16Y-04C-02000 | Oil tank cap |
| 4 | 07056-18416 | Mesh filter |
| 5 | 01641-21423 | Washer 14 |
| 6 | 01602-21442 | Washer 14 |
| 7 | 01010-51435 | Bolt M14x35 |
| 8 | 07000-12135 | O-ring |
| 9 | 16Y-04-00006 | Flange |
| 10 | 01602-21030 | Washer 10 |
| 11 | 01010-51025 | Bolt M10x25 |
| 12 | 16Y-04-00007 | Nozzle |
| 13 | 07700-40460 | Valve |
| 14 | 16Y-04-00008 | Drain coupling |
| 15 | 07280-01210 | Clamp |
| 16 | 07270-21250 | Hose |
| 17 | 08035-12014 | Clip |
