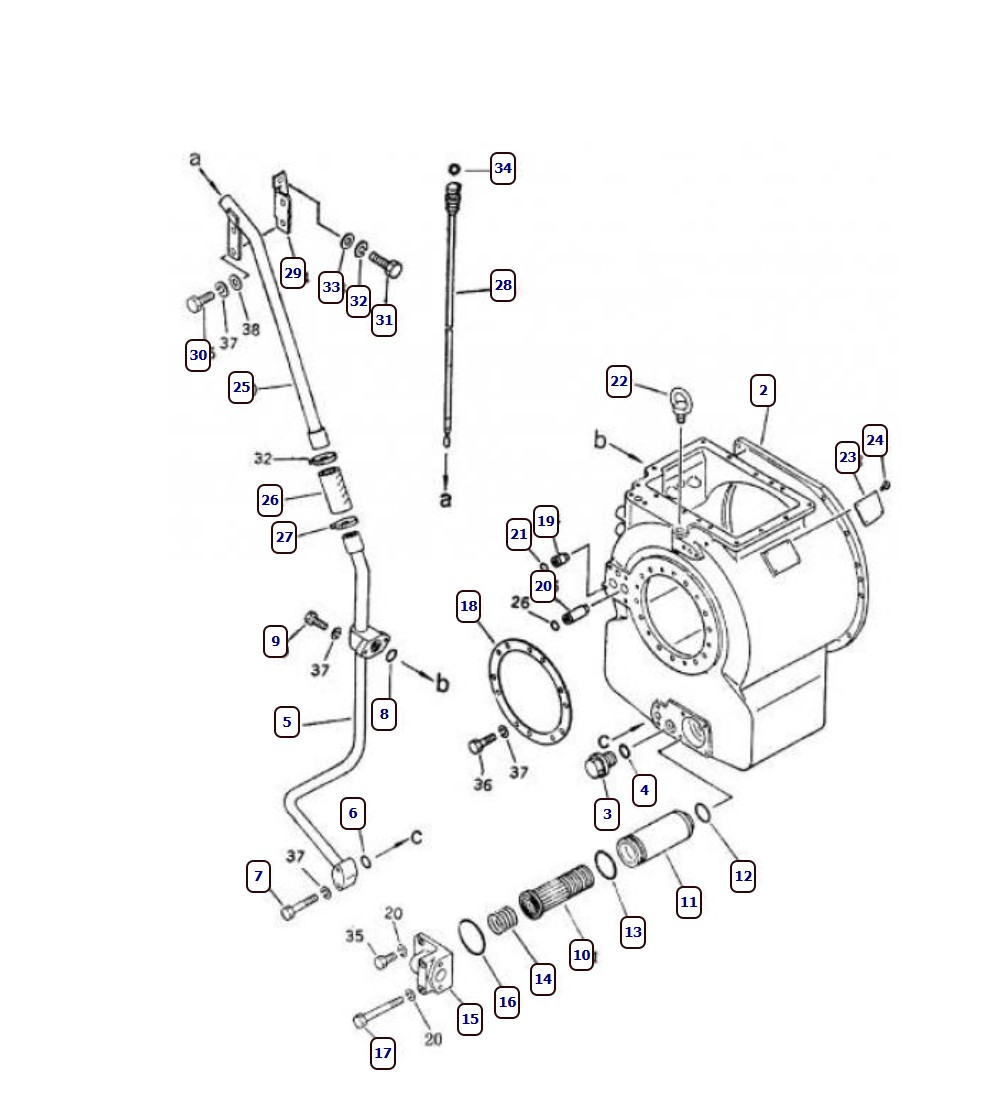

| ID | Part number | Name |
| 1 | 16Y-15-00000 | gearbox |
| 2 | 16Y-15-00001 | box |
| 3 | 07044-13620 | threaded plug |
| 4 | 07002-13634 | O-ring |
| 5 | 16Y-15-02100 | oil tube |
| 6 | 07000-13028 | O-ring |
| 7 | 01010-51060 | Bolt M10x60 |
| 8 | 07000-13035 | O-ring |
| 9 | 01010-51030 | Bolt M10x30 |
| 10 | 16Y-15-07000 | filter |
| 11 | 16Y-15-08000 | filter |
| 12 | 07000-13045 | O-ring |
| 13 | 07000-12075 | O-ring |
| 14 | 16Y-15-00087 | spring |
| 15 | 16Y-15-00086 | coating |
| 16 | 07000-72090 | O-ring |
| 17 | 01010-51090 | Bolt M10x90 |
| 18 | 16Y-15-00005 | plate |
| 19 | 16Y-15-00021 | coupling |
| 20 | 16Y-15-00020 | coupling |
| 21 | 07000-72018 | O-ring |
| 22 | 04530-02035 | eye bolt |
| 23 | 16Y-15-00074 | nameplate |
| 24 | 04418-03060 | rivet |
| 25 | 16Y-15-02200 | oil tube |
| 26 | 07260-04111 | hose |
| 27 | 07281-00489 | clamp |
| 28 | 16Y-15-02300 | level indicator |
| 29 | 16Y-15-02400 | plate |
| 30 | 01010-51025 | Bolt M10x25 |
| 31 | 01010-51035 | Bolt M10x35 |
| 32 | 01602-21030 | Washer 10 |
| 33 | 01643-31032 | Washer 10 |
| 34 | 07002-12434 | O-ring |
