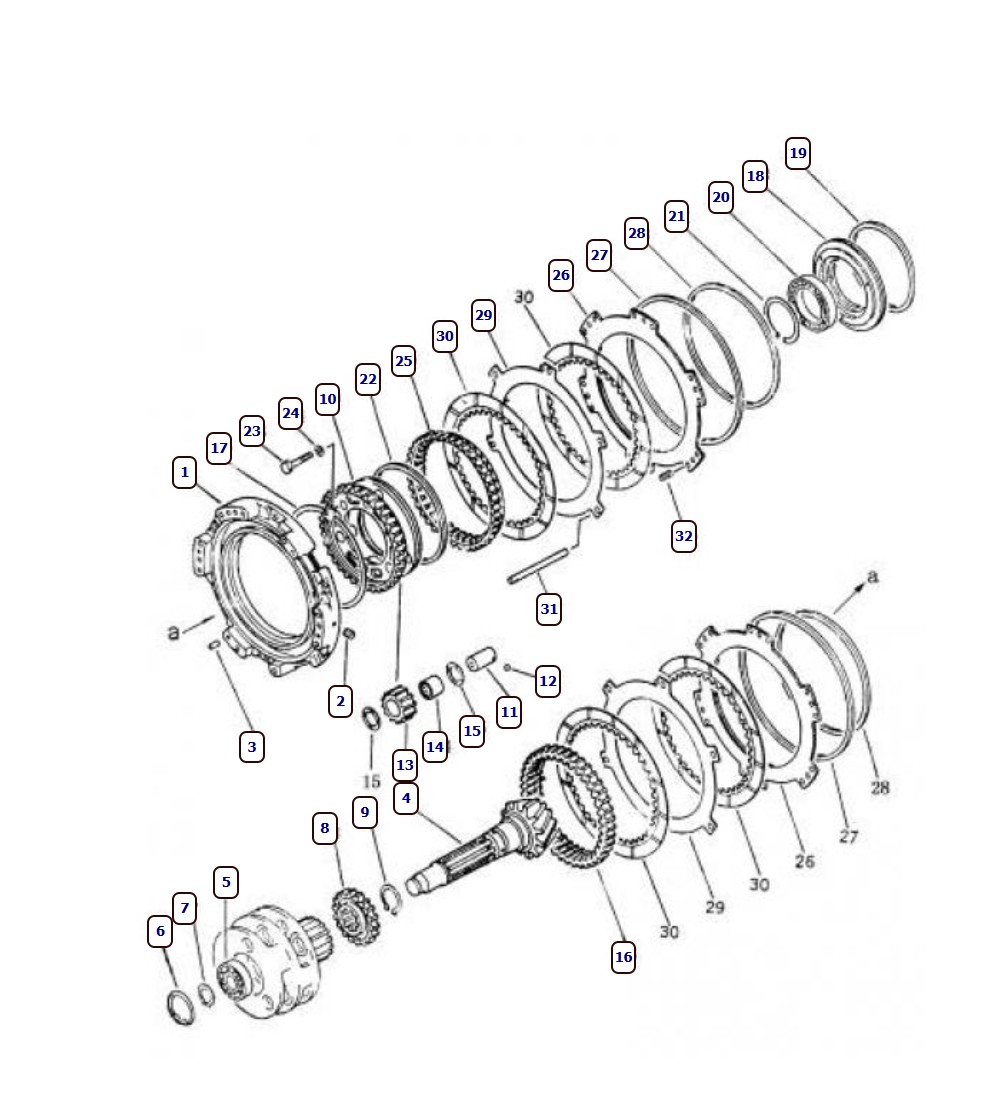

| ID | Part number | Name |
| 1 | 16Y-15-00075 | Oil cylinder |
| 2 | 16Y-15-00088 | Plug |
| 3 | 04020-01228 | Cylindrical pin |
| 4 | 16Y-15-00061 | Shaft |
| 5 | GB283-NU1015C4 | Cylindrical roller bearing |
| 6 | 04065-08530 | Retaining ring |
| 7 | 16Y-15-00082 | Shaft retaining ring |
| 8 | 16Y-15-00059 | Central gear |
| 9 | 04064-06525 | Retaining ring |
| 10 | 16Y-15-00070 | Planetary gearbox second gear |
| 11 | 16Y-15-00051 | Shaft planetary gearbox |
| 12 | 04260-00635 | Steel ball |
| 13 | 16Y-15-00046 | Planetary mechanism |
| 14 | 16Y-15-04000 | Needle bearing |
| 15 | 09233-03220 | Thrust washer |
| 16 | 16Y-15-00049 | Gear ring |
| 17 | 16Y-15-00047 | Internal retaining ring |
| 18 | 16Y-15-00053 | Sealing ring |
| 19 | 07018-12455 | Sealing ring |
| 20 | 16Y-15-05000 | Bearing |
| 21 | 16Y-15-00067 | Shaft retaining ring |
| 22 | 16Y-15-00050 | Sealing ring |
| 23 | 01010-51060 | M10*60 Bolt |
| 24 | 01602-21030 | Washer 10 |
| 25 | 16Y-15-00077 | Gear ring |
| 26 | 16Y-15-00026 | Piston |
| 27 | 16Y-15-00027 | Sealing ring |
| 28 | 16Y-15-00025 | Sealing ring |
| 29 | 16Y-15-00003 | Plate |
| 30 | 16Y-15-09000 | Friction disc |
| 31 | 16Y-15-00071 | Pin |
| 32 | 16Y-15-00073 | Spring |
