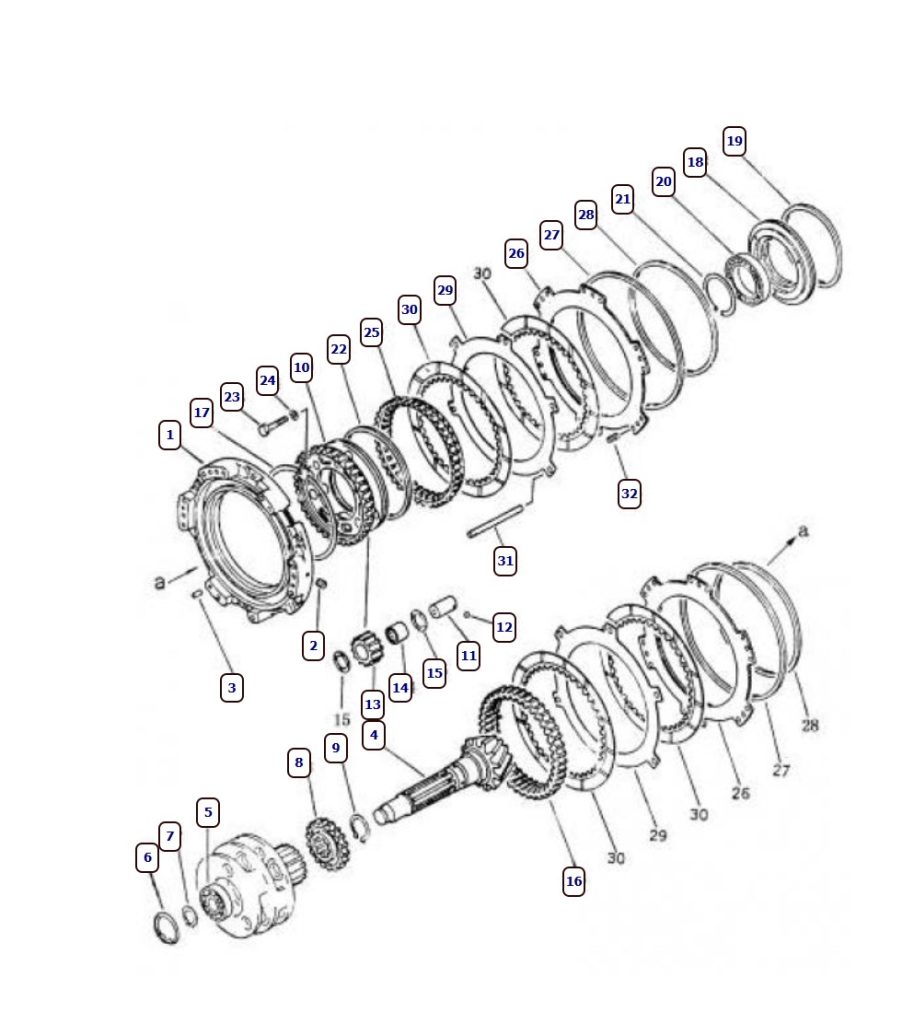

| ID | Part number | Name |
| 1 | 16Y-15-00081 | oil cylinder |
| 2 | 04020-01228 | cylindrical pin |
| 3 | 16Y-15-00016 | central gear |
| 4 | 16Y-15-00015 | thrust bushings |
| 5 | 04064-07525 | snap ring |
| 6 | 16Y-15-00085 | planetary gearbox shaft |
| 7 | 07018-12455 | sealing ring |
| 8 | 16Y-15-00084 | planetary gearbox shaft |
| 9 | 16Y-15-00031 | planetary gearbox shaft |
| 10 | 04260-00635 | steel ball |
| 11 | 04065-03815 | snap ring |
| 12 | 16Y-15-00028 | planetary mechanism |
| 13 | 16Y-15-01000 | needle bearing |
| 14 | 09233-03820 | thrust washer |
| 15 | 16Y-15-00029 | gear ring |
| 16 | 16Y-15-00030 | central gear |
| 17 | 04064-05020 | snap ring |
| 18 | 16Y-15-00026 | piston |
| 19 | 16Y-15-00027 | sealing ring |
| 20 | 16Y-15-00025 | sealing ring |
| 21 | 16Y-15-00003 | plate |
| 22 | 16Y-15-09000 | friction disk |
| 23 | 16Y-15-00083 | spring |
