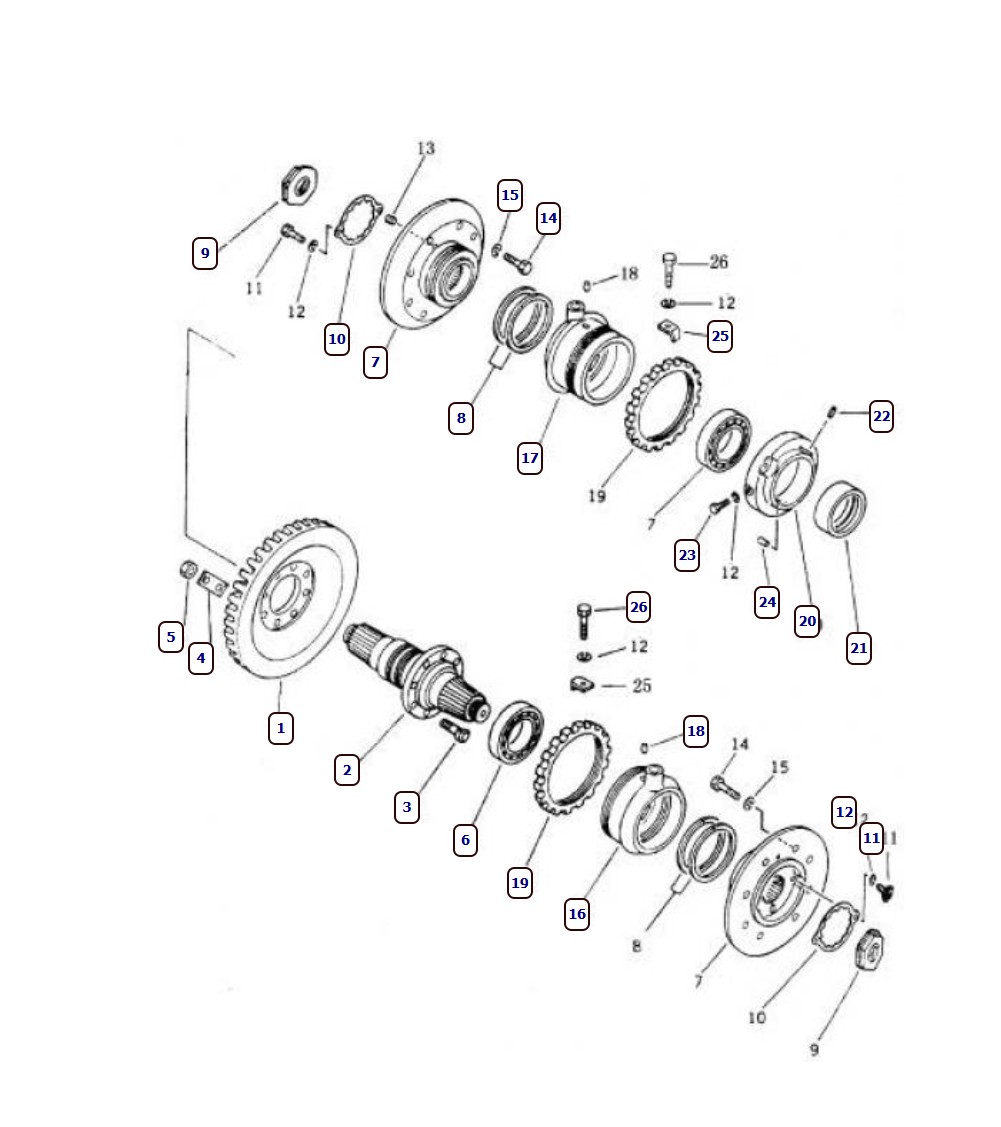

| ID | Part number | Name |
| 1 | 16Y-16-00014 | helical gear |
| 2 | 16Y-16-00015 | cross axle |
| 3 | 16Y-16-00023 | bolt |
| 4 | 16Y-16-00022 | lock washer |
| 5 | 01582-01815 | Nut M18 x 1.5 |
| 6 | GB297-32215 | tapered roller bearing |
| 7 | 16Y-16-03001 | wheel hub |
| 8 | 16Y-16-00012 | sealing ring |
| 9 | 16Y-16-00018 | nut |
| 10 | 16Y-16-00019 | plate |
| 11 | 01252-71020 | Bolt M10 x 20 |
| 12 | 01602-21030 | Washer 10 |
| 13 | 07043-70108 | threaded plug |
| 14 | 01010-51440 | Bolt M14 x 40 |
| 15 | 01602-21442 | Washer 14 |
| 16 | 16Y-16-06000 | left bearing housing |
| 17 | 16Y-16-05000 | right bearing housing |
| 18 | 16Y-16-00017 | pin |
| 19 | 16Y-16-00024 | adjusting nut |
| 20 | 16Y-16-00020 | coupling socket |
| 21 | 16Y-16-00021 | bushing |
| 22 | 04025-00518 | cylindrical pin |
| 23 | 01010-51025 | Bolt M10 x 25 |
| 24 | 04020-01024 | cylindrical pin |
| 25 | 16Y-16-00016 | plate |
| 26 | 01010-51020 | Bolt M10 x 20 |
