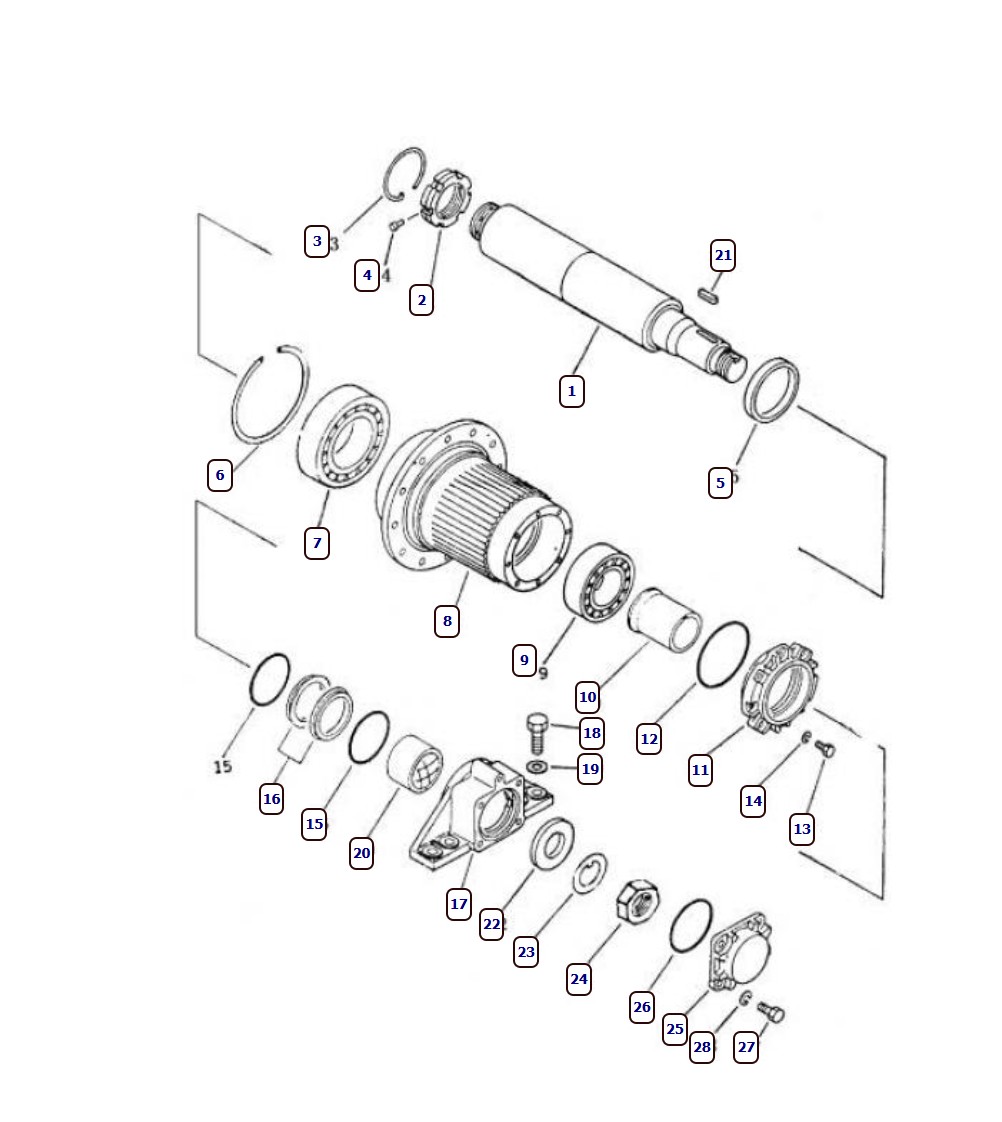

| ID | Part number | Name |
| 1 | 16Y-18-00001 | Shaft |
| 2 | 16Y-18-00031 | Nut |
| 3 | 16Y-18-00030 | Ring |
| 4 | 16Y-18-00032 | Pin |
| 5 | 16Y-18-00029 | Bearing lock ring |
| 6 | 04071-00250 | Lock ring |
| 7 | GB283-NJ2228EC4 | Cylindrical roller bearing |
| 8 | 16Y-18-00033 | Drum teeth |
| 9 | GB288-23220CC3 | Spherical roller bearing |
| 10 | 16Y-18-00006 | Filter |
| 11 | 16Y-18-00010 | Coating |
| 12 | 07000-15170 | O-ring |
| 13 | 01010-51230 | Bolt M12*30 |
| 14 | 01602-21236 | Washer 12 |
| 15 | 16Y-18-00009 | Sealing ring |
| 16 | 16Y-18-00008 | Floating seal |
| 17 | 16Y-18-00007 | Socket |
| 18 | 01010-52465 | Bolt M24*65 |
| 19 | 01602-22472 | Washer 24 |
| 20 | 16Y-18-01000 | Bushing |
| 21 | 04000-01065 | Key on flat |
| 22 | 16Y-18-00002 | Retaining ring |
| 23 | 16Y-18-00003 | Lock washer |
| 24 | 16Y-18-00004 | Nut |
| 25 | 16Y-18-00005 | Coating |
| 26 | 07000-12130 | O-ring |
| 27 | 01010-51845 | Bolt M18*45 |
| 28 | 01602-21854 | Washer 18 |
