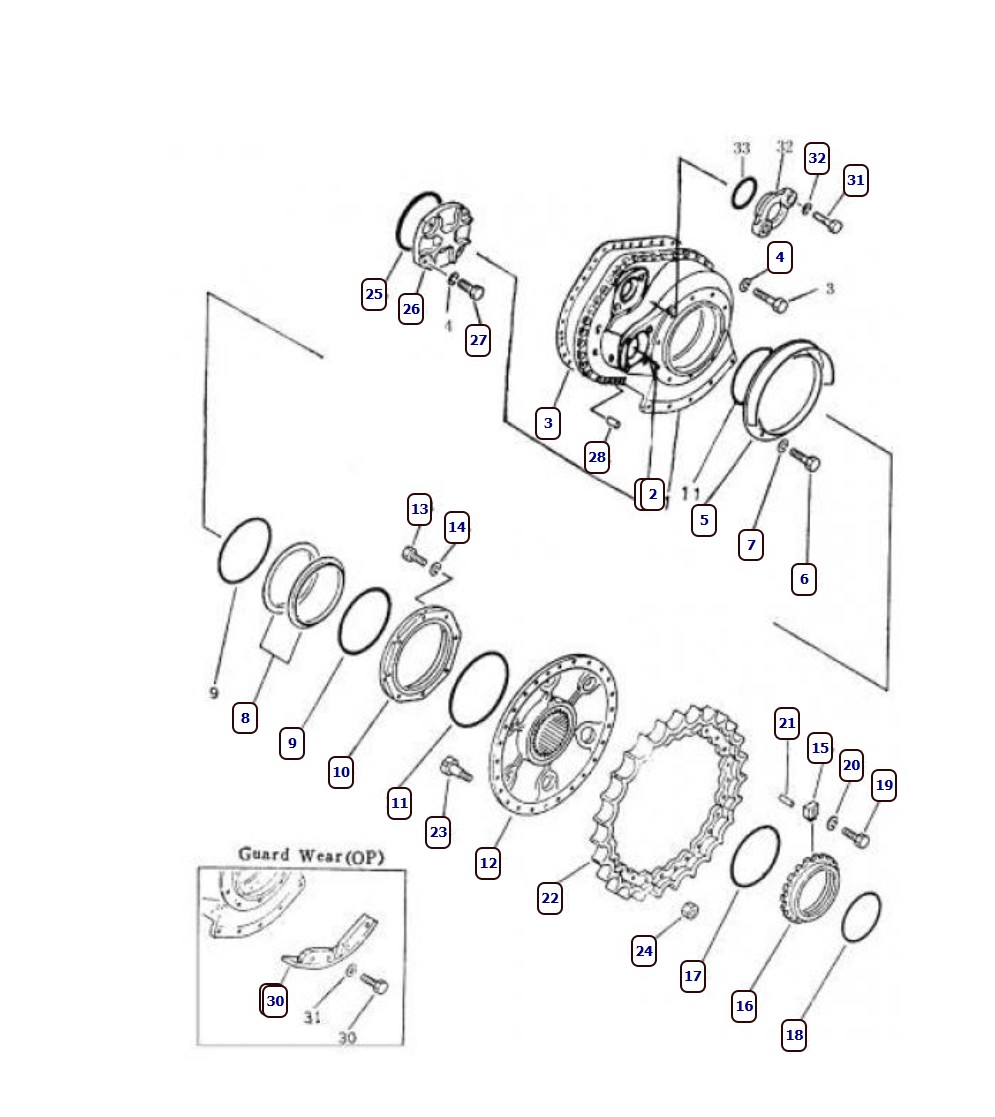

| ID | Part number | Name |
| 1 | 16Y-18-00019 | Housing shell (left) |
| 2 | 16Y-18-00020 | Housing shell (right) |
| 3 | 16Y-18-00037 | Gasket |
| 4 | 01602-21442 | Washer 14 |
| 5 | 16Y-18-00041 | Dust cap |
| 6 | 01010-51025 | Bolt M10 x 25 |
| 7 | 01602-21030 | Washer 10 |
| 8 | 16Y-18-00034 | Floating seal |
| 9 | 16Y-18-00035 | Sealing ring |
| 10 | 16Y-18-00042 | Dust cap |
| 11 | 07000-15345 | O-ring |
| 12 | 16Y-18-00045 | Hub |
| 13 | 01010-50825 | Bolt M8 x 25 |
| 14 | 01602-20825 | Washer 8 |
| 15 | 16Y-18-00012 | Plate |
| 16 | 16Y-18-00011 | Lock nut |
| 17 | 07000-15270 | O-ring |
| 18 | 07000-15230 | O-ring |
| 19 | 01252-71635 | Bolt M16 x 35 |
| 20 | 01602-21648 | Washer 16 |
| 21 | 04020-01228 | Cylindrical pin |
| 22 | 16Y-18-00014 | Sprocket teeth |
| 23 | 16Y-18-00013 | Bolt |
| 24 | 01803-02228 | Nut M22 |
| 25 | 07000-15160 | O-ring |
| 26 | 16Y-18-00048 | Cover |
| 27 | 01010-51430 | Bolt M14 x 30 |
| 28 | 16Y-18-00046 | Fastener |
| 29 | 16Y-18-04000A | Plate retainer (left) |
| 30 | 16Y-18-05000A | Plate retainer (right) |
| 31 | 01010-52050 | Bolt M20 x 50 |
| 32 | 01602-22060 | Washer 20 |
| 33 | 16Y-18-00047 | Cover |
| 34 | 07000-15110 | O-ring |
