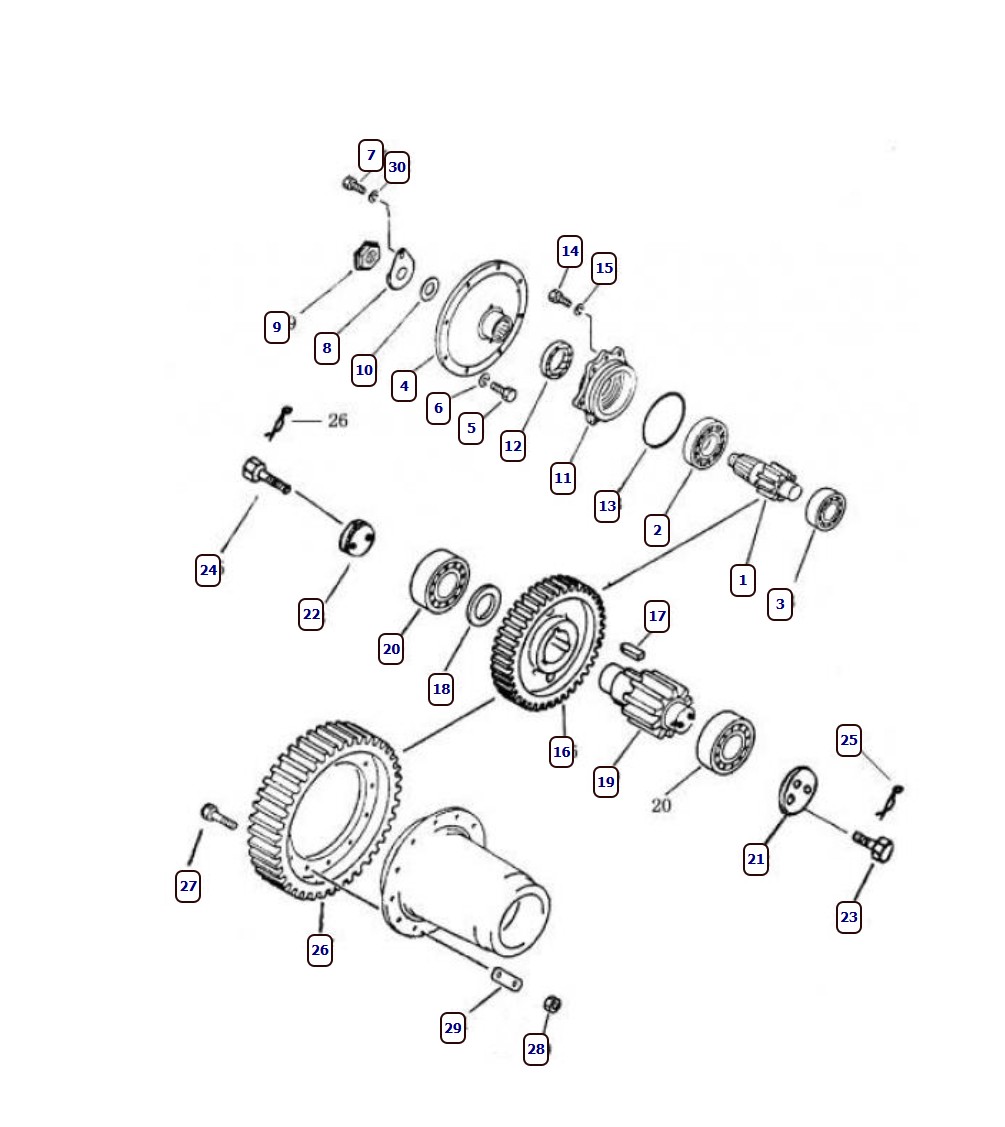

| ID | Part number | Name |
| 1 | 16Y-18-00024 | Gear shaft () |
| 2 | GB283-NJ314C4 | Cylindrical roller bearing |
| 3 | GB283-NJ2311EC4 | Cylindrical roller bearing |
| 4 | 16Y-18-00022 | Flange |
| 5 | 01010-51430 | Bolt M14x30 |
| 6 | 01602-21442 | Washer 14 |
| 7 | 16Y-18-00025 | Bolt |
| 8 | 16Y-18-00026 | Pillow block |
| 9 | 16Y-16-00018 | Nut |
| 10 | 16Y-18-00023 | Gasket |
| 11 | 16Y-18-00021 | Bearing unit |
| 12 | 07013-10090 | Seal |
| 13 | 07000-15165 | O-ring |
| 14 | 01010-51235 | Bolt M12x35 |
| 15 | 01602-21236 | Washer 12 |
| 16 | 16Y-18-00018 | Gear |
| 17 | 16Y-18-00017 | Flat key |
| 18 | 16Y-18-00027 | Plate |
| 19 | 16Y-18-00016 | Gear shaft |
| 20 | GB283-NJ2316EC4 | Cylindrical roller bearing |
| 21 | 16Y-18-00015 | Cover |
| 22 | 16Y-18-00028 | Cover |
| 23 | 01014-51025 | Bolt M10x25 |
| 24 | 01014-51020 | Bolt M10x20 |
| 25 | 04059-01010 | Steel wire |
| 26 | 16Y-18-00036 | Gear |
| 27 | 01010-82060 | Bolt M20x60 |
| 28 | 16Y-18-00040 | Nut |
| 29 | 16Y-18-00039 | Lock washer |
| 30 | 01643-31645 | Washer 16 |
