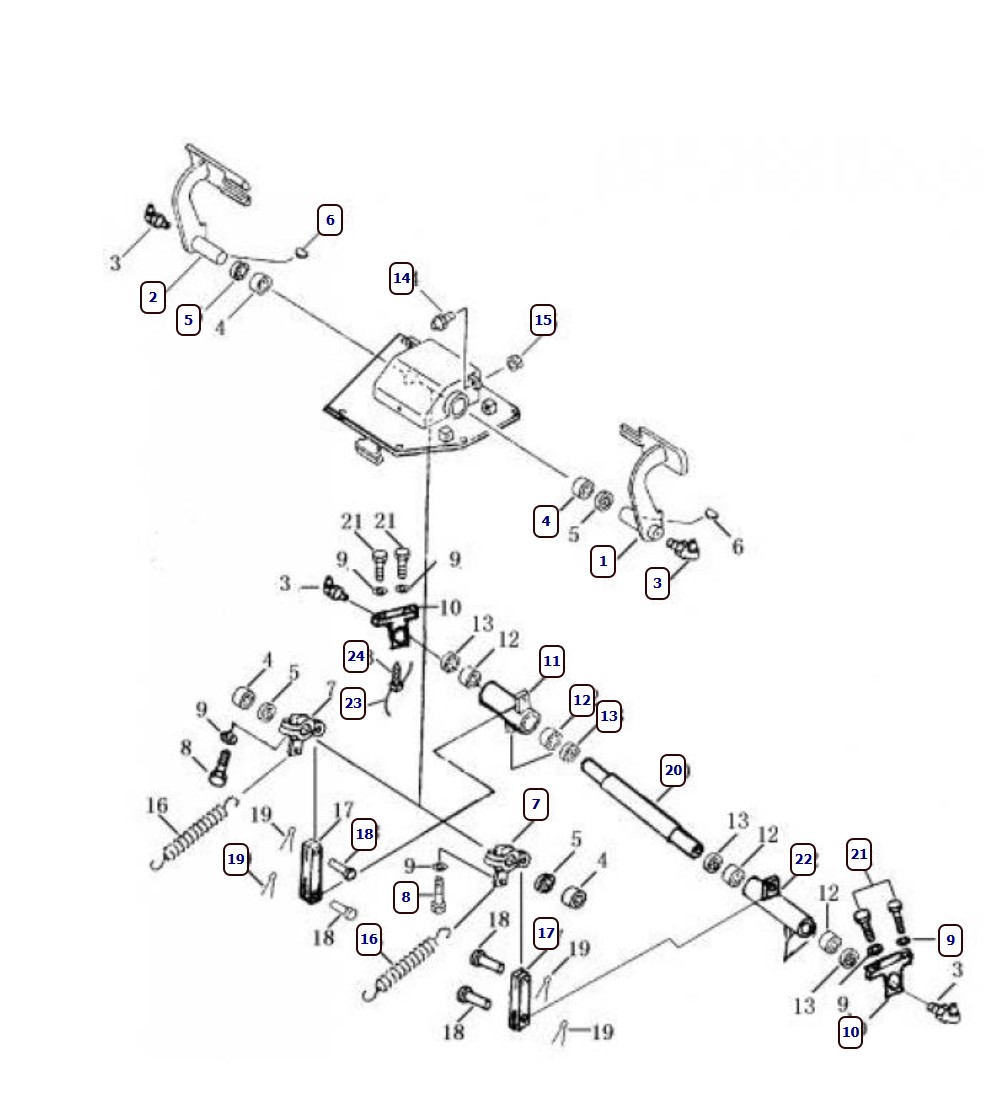

| ID | Part number | Name |
| 1 | 16Y-26C-01000 | Pedal (LH) |
| 2 | 16Y-26C-02000 | Pedal (RH) |
| 3 | 07021-01090 | Lubricator 90° M10*1 |
| 4 | GB290-HK3520 | Needle roller bearing with stamped outer ring |
| 5 | 06122-03504 | Dustproof seal |
| 6 | 04010-01032 | Segmented key |
| 7 | 10Y-26-13000 | Spring base |
| 8 | 01010-51235 | Bolt M12*35 |
| 9 | 01643-31232 | Washer 12 |
| 10 | 16Y-26C-00002 | Bracket |
| 11 | 16Y-26C-09000 | Lever (RH) |
| 12 | GB290-HK3020 | Needle roller bearing with stamped outer ring |
| 13 | 06122-03004 | Dustproof seal |
| 14 | 09311-41237 | Bolt |
| 15 | 01580-11210 | Nut M12 |
| 16 | 154-43-41260 | Spring |
| 17 | 16Y-26C-00004 | Coupling |
| 18 | 04205-11440 | Cylindrical pin |
| 19 | 04050-14022 | Cotter pin |
| 20 | 16Y-26C-00001 | Shaft |
| 21 | 01010-51225 | Bolt M12*25 |
| 22 | 16Y-26C-08000 | Lever (LH) |
| 23 | 01306-10616 | Bolt M6*16 |
| 24 | 04059-01010 | Steel wire |
