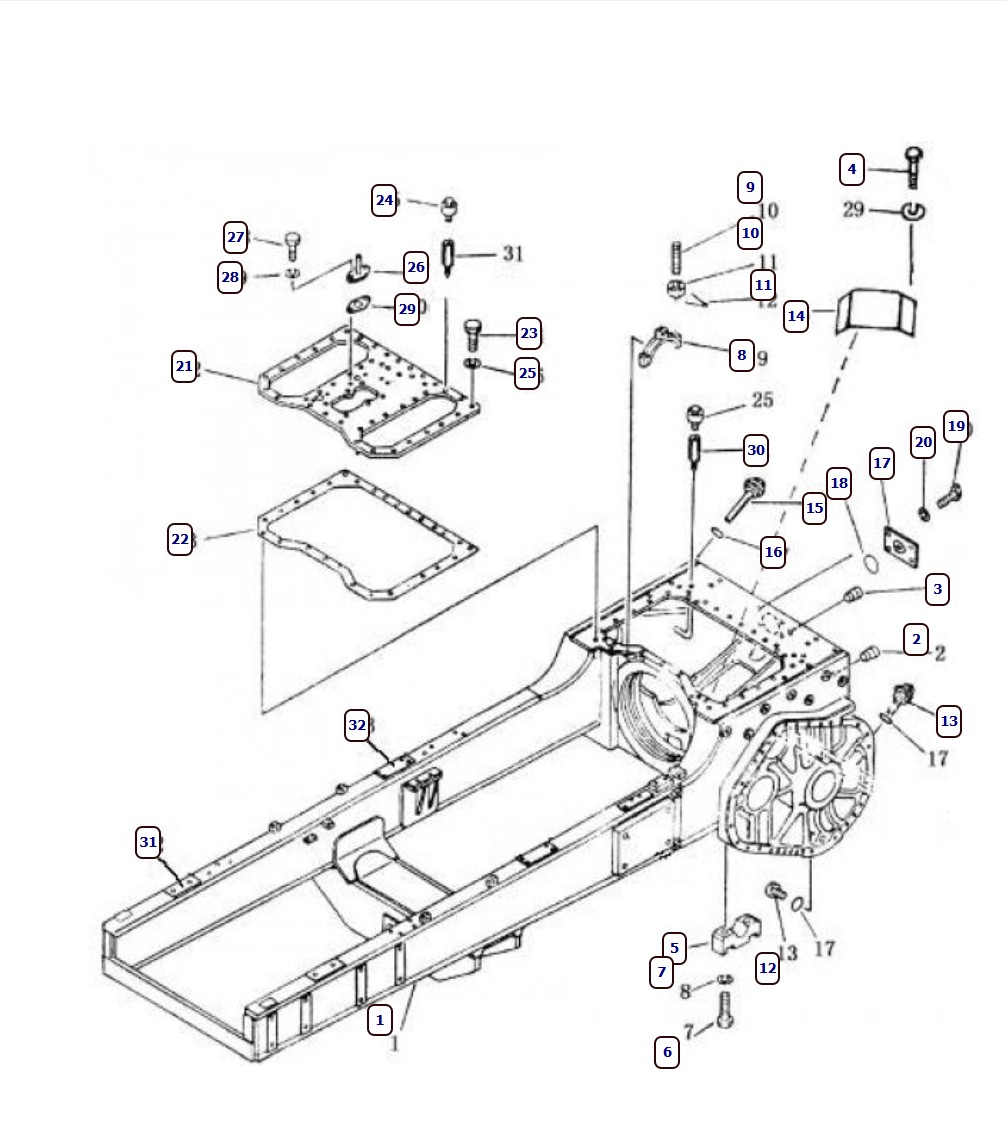

| ID | Part number | Name |
| 1 | 16Y-30-10000 | frame |
| 2 | 07049-23321 | dust-proof plug |
| 3 | 07049-12418 | dust-proof plug |
| 4 | 01010-51016 | Bolt M10 x 16 |
| 5 | 16Y-30-00008 | seat |
| 6 | 01010-52295 | Bolt M22 x 95 |
| 7 | 01602-22268 | Washer 22 |
| 8 | 16Y-30-00004 | cover |
| 9 | 16Y-30-00005 | stud |
| 10 | 01592-12226 | Nut M22 x 1.5 |
| 11 | 04050-05040 | cotter pin |
| 12 | 07044-13620 | threaded plug |
| 13 | 16Y-30-30000 | oil level gauge |
| 14 | 16Y-30-00007 | plate |
| 15 | 16Y-30-40000 | oil level gauge |
| 16 | 07000-13032 | O-ring |
| 17 | 16Y-30-00006 | cover |
| 18 | 07000-13110 | O-ring |
| 19 | 01010-51630 | Bolt M16 x 30 |
| 20 | 01602-21648 | Washer 16 |
| 21 | 16Y-30-00003 | plate |
| 22 | 16Y-30-00002 | gasket |
| 23 | 01010-51435 | Bolt M14 x 35 |
| 24 | 07030-00252 | breather |
| 25 | 01602-21442 | Washer 14 |
| 26 | 16Y-30-20000 | ventilation |
| 27 | 01010-51025 | Bolt M10 x 25 |
| 28 | 01602-21030 | Washer 10 |
| 29 | 16Y-30-00001 | washer |
| 30 | 16Y-30-00009 | tube |
| 31 | 16Y-30-00010 | plate |
| 32 | 16Y-30-00011 | plate |
