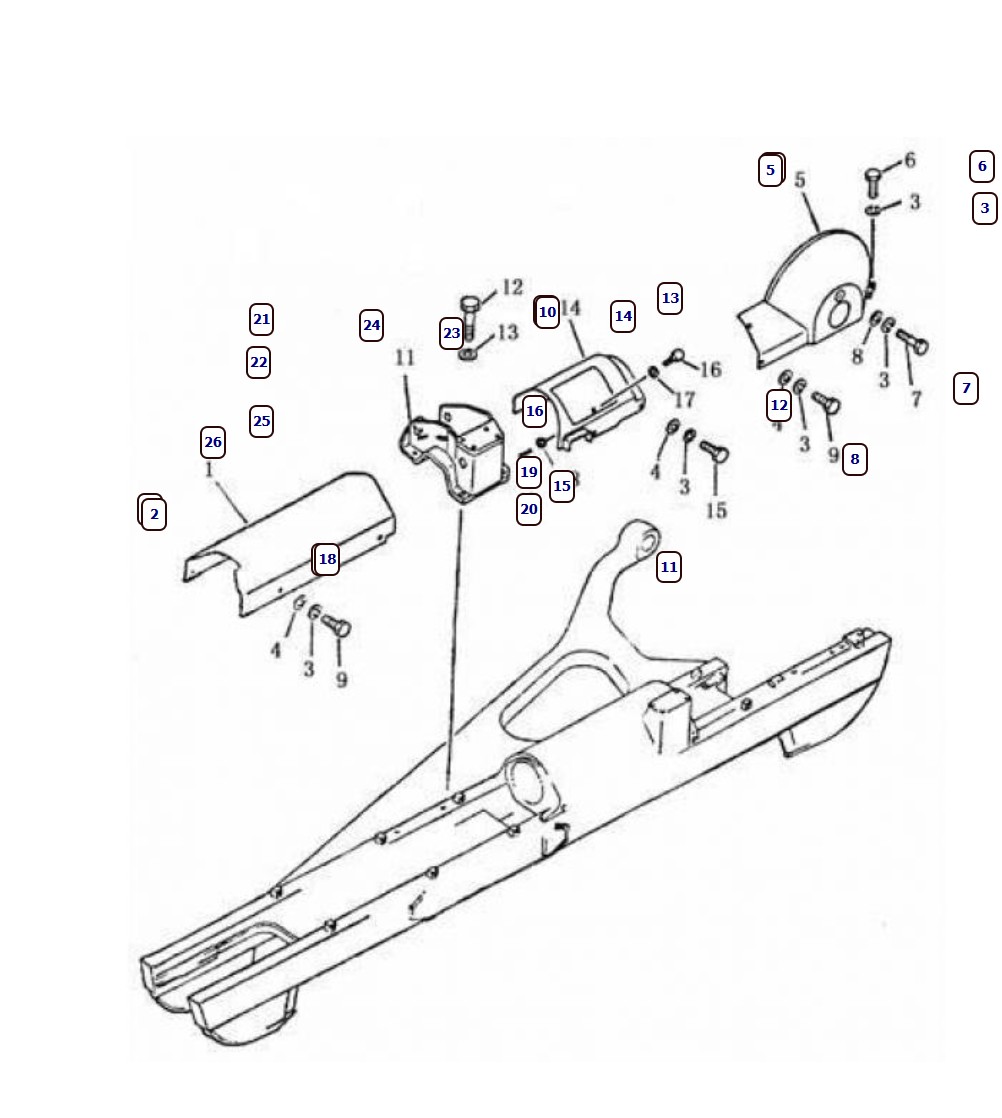

| ID | Part number | Name |
| 1 | 16Y-40-00001 | cover (LH) () |
| 2 | 16Y-40-00002 | cover (RH) () |
| 3 | 01602-21442 | Washer 14 |
| 4 | 16Y-40-12000 | drive wheel guard, left |
| 5 | 16Y-40-13000 | drive wheel guard, right |
| 6 | 01010-51435 | Bolt M14 x 35 |
| 7 | 01010-51490 | Bolt M14 x 90 |
| 8 | 01010-51425 | Bolt M14 x 25 |
| 9 | 16Y-40-07000 | covering |
| 10 | 16Y-40-08000 | cover (RH) () |
| 11 | 01010-51430 | Bolt M14 x 30 |
| 12 | 01643-31445 | Washer 14 |
| 13 | 16Y-40-07001 | bolt |
| 14 | 01640-21016 | Washer 10 |
| 15 | 01641-21016 | Washer 10 |
| 16 | 04050-03015 | cotter pin |
| 17 | 16Y-40-04000 | Bracket (LH) () |
| 18 | 16Y-40-05000 | Bracket (RH) () |
| 19 | 01010-52050 | Bolt M20 x 50 |
| 20 | 01602-22060 | Washer 20 |
| 21 | 01010-52250 | Bolt M22 x 50 |
| 22 | 01602-22268 | Washer 22 |
| 23 | 16Y-40-00007 | bolt |
| 24 | 16Y-40-00008 | coupling |
| 25 | 01590-33033 | Nut M30 x 3 |
| 26 | 04050-16345 | cotter pin |
