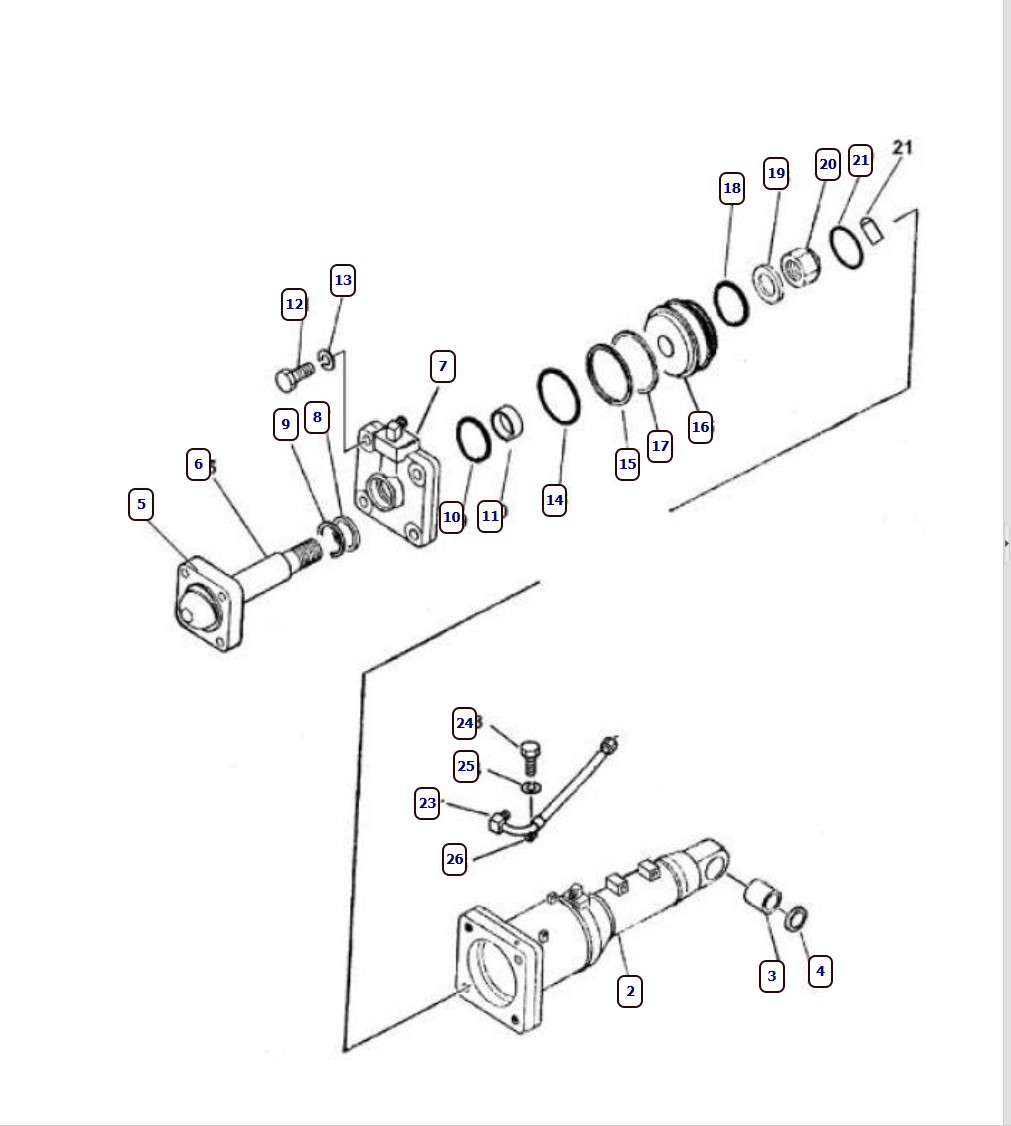

| ID | Part number | Name |
| 1 | 16Y-63-13000 | Tilt Cylinder |
| 2 | 16Y-63-13100 | Cylinder |
| 3 | 07143-10505 | Bushing |
| 4 | 16Y-63-13600 | Seal |
| 5 | 16Y-63-13004 | Support |
| 6 | 16Y-63-13300 | Shaft |
| 7 | 16Y-63-13200 | Cover |
| 8 | 16Y-63-13006 | Ring |
| 9 | 16Y-63-13005 | Ring |
| 10 | 16Y-63-13400 | Seal |
| 11 | 16Y-63-13007 | Seal |
| 12 | 01010-52770 | Bolt M27x70 |
| 13 | 01602-22783 | Washer 27 |
| 14 | 07000-15150 | O-ring |
| 15 | 16Y-63-13008 | Ring |
| 16 | 16Y-63-13003 | Piston |
| 17 | 16Y-63-13500 | Ring |
| 18 | 07000-12055 | O-ring |
| 19 | 16Y-63-13002 | Washer |
| 20 | 16Y-63-13001 | Nut |
| 21 | 04059-01025 | Steel Wire |
| 22 | 01322-40820 | Fastening Screw |
| 23 | 16Y-63-13700 | Tube |
| 24 | 01010-50810 | Bolt M8x10 |
| 25 | 01642-20810 | Washer 8 |
| 26 | 16Y-63-13009 | Clamp |
