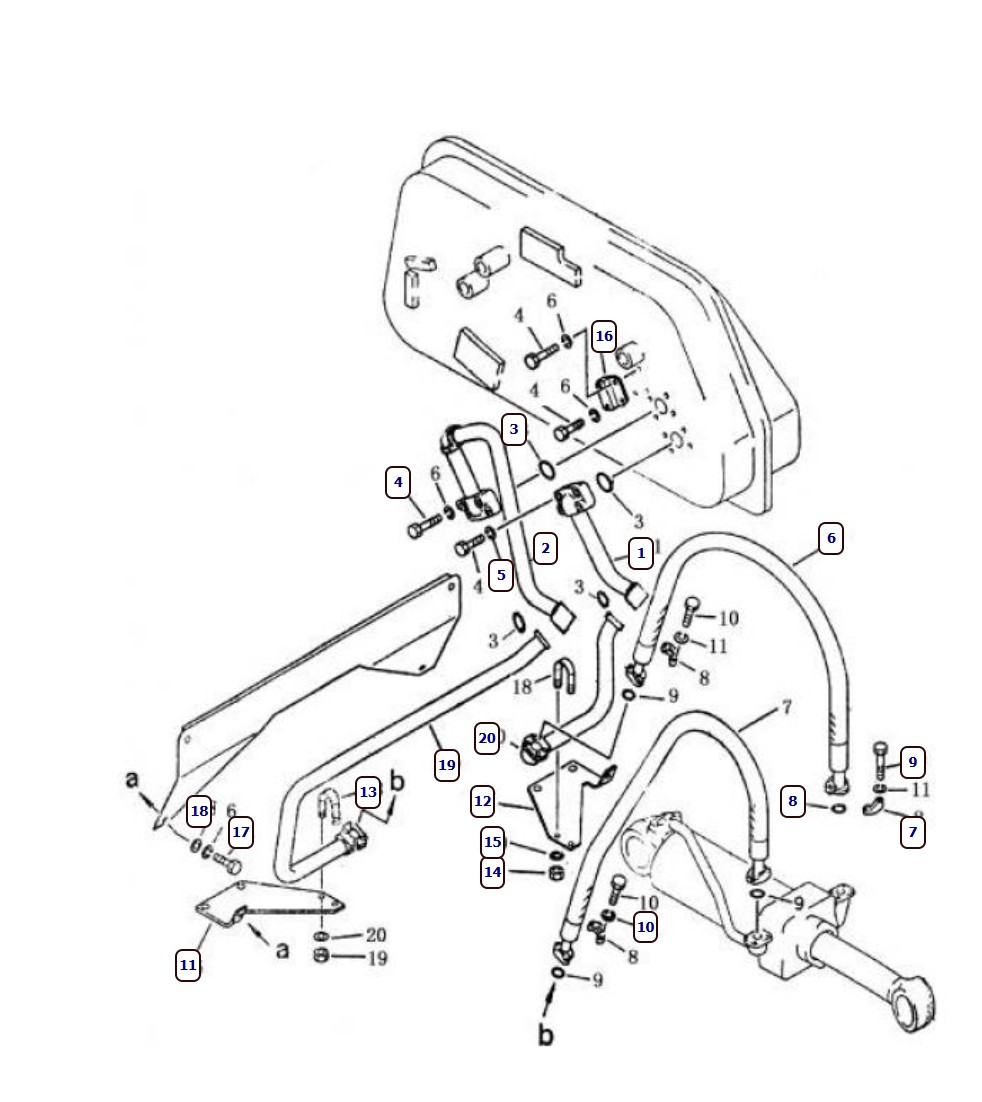

| ID | Part number | Name |
| 1 | 16Y-64-02000 | Tube |
| 2 | 16Y-64-01000 | Tube |
| 3 | 07000-13048 | O-ring |
| 4 | 01010-51235 | Bolt M12 * 35 |
| 5 | 01602-21236 | Washer 12 |
| 6 | 07114-01012 | Hose |
| 7 | 07371-31049 | Flange |
| 8 | 07000-13032 | O-ring |
| 9 | 01010-51035 | Bolt M10 * 35 |
| 10 | 01602-21030 | Washer 10 |
| 11 | 16Y-64-00003 | Plate |
| 12 | 16Y-64-00004 | Plate |
| 13 | 07283-23442 | Clamp |
| 14 | 01599-01011 | Nut M10 * 1.25 |
| 15 | 01643-31032 | Washer 10 |
| 16 | 16Y-64-00001 | Plate |
| 17 | 01010-51220 | Bolt M12 * 20 |
| 18 | 01643-31232 | Washer 12 |
| 19 | 16Y-64-03000 | Tube |
| 20 | 16Y-64-04000 | → |
