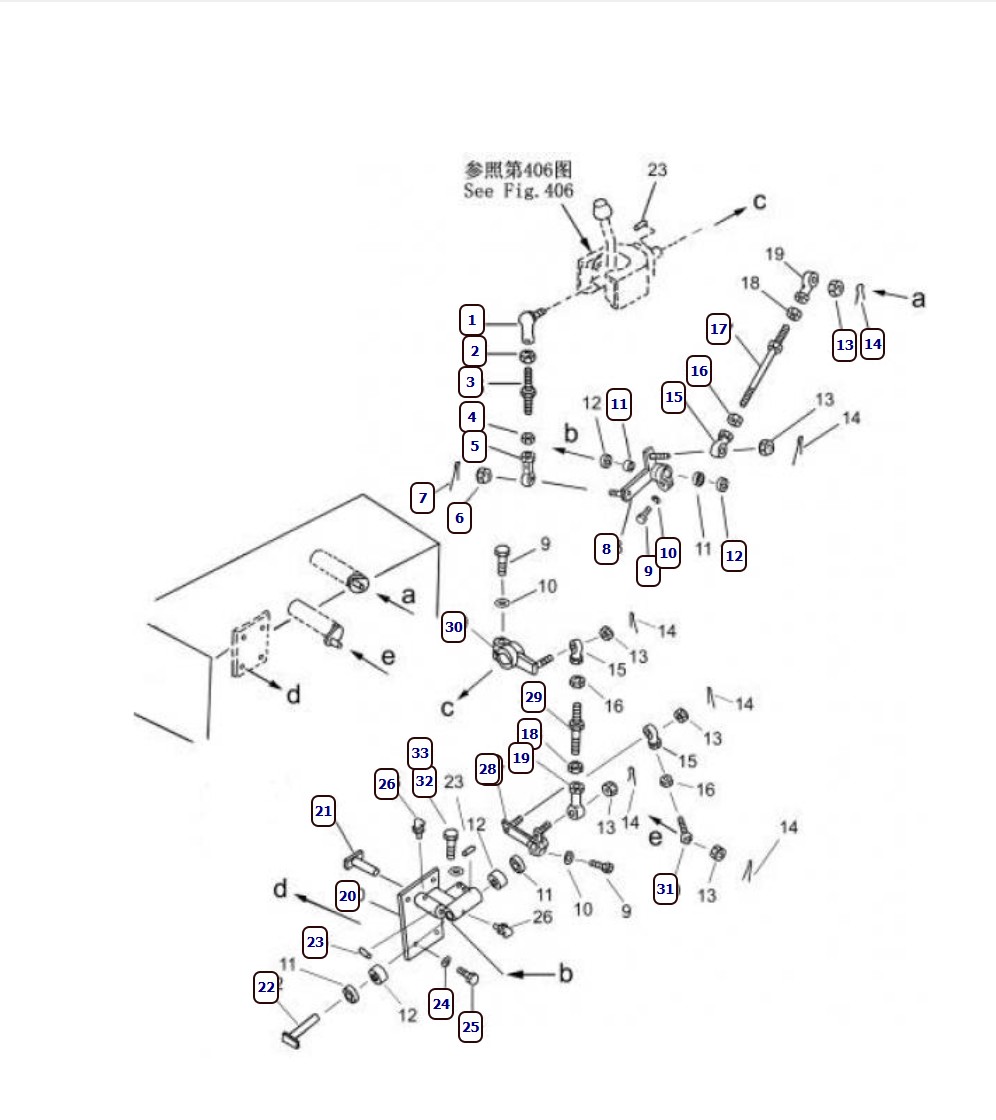

| ID | Part number | Name |
| 1 | 195-61-45420 | Ball joint |
| 2 | 01582-11210 | Nut M12x1.5 |
| 3 | 16Y-86C-01000 | Pin |
| 4 | 01508-41207 | Nut M12x1.5 |
| 5 | 04250-91265 | Pivot bearing |
| 6 | 01593-31210 | Nut M12x1.5 |
| 7 | 04050-13020 | Cotter pin |
| 8 | 16Y-86C-02000 | Support |
| 9 | 01010-80830 | Bolt M8x30 |
| 10 | 01643-30823 | Washer 8 |
| 11 | GB290-HK2012 | Needle roller bearing with stamped outer ring |
| 12 | 06122-02004 | Dust seal |
| 13 | 01593-31008 | Nut M10x1.25 |
| 14 | 04050-12018 | Cotter pin |
| 15 | 04250-41056 | Pivot bearing |
| 16 | 01582-11008 | Nut M10x1.25 |
| 17 | 04248-31019 | Lever |
| 18 | 01508-41006 | Nut M10x1.25 |
| 19 | 04250-61056 | Pivot bearing |
| 20 | 16Y-86C-03000 | Support |
| 21 | 16Y-86C-00001 | Shaft |
| 22 | 16Y-86C-00002 | Shaft |
| 23 | 04010-00519 | Woodruff key |
| 24 | 01602-21236 | Washer 12 |
| 25 | 01010-51230 | Bolt M12x30 |
| 26 | 07021-01090 | Lubricator 90° M10x1 |
| 27 | 16Y-86C-04000 | Support |
| 28 | 16Y-86C-05000 | Support |
| 29 | 04248-31010 | Lever |
| 30 | 16Y-86C-10000 | Bracket |
| 31 | 04252-01061 | Pivot bearing |
| 32 | 01010-51020 | Bolt M10x20 |
| 33 | 01602-21030 | Washer 10 |
