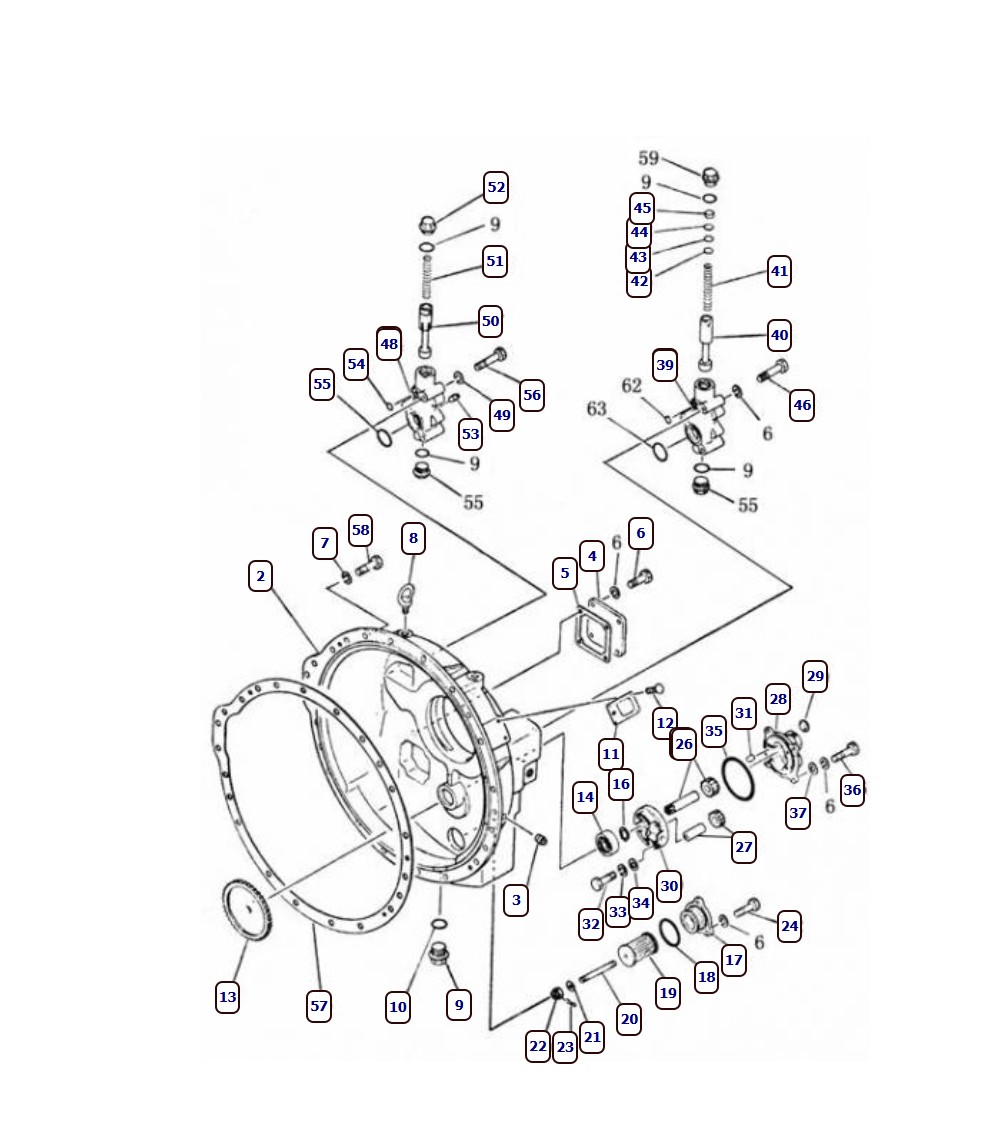

| ID | Part number | Name |
| 1 | 23Y-11B-00000 | Torque converter assembly |
| 2 | 154-13-53110 | Torque converter housing |
| 3 | 07042-20415 | Threaded plug |
| 4 | 175-13-23220 | Cover |
| 5 | 175-13-23231 | Gasket |
| 6 | 01010-81225 | M12*25 bolt |
| 7 | 01602-21236 | 12 washer |
| 8 | 04530-11628 | Eye bolt |
| 9 | 07044-13620 | Threaded plug |
| 10 | 07002-13634 | O-ring |
| 11 | 14Y-11-00038 | Plate |
| 12 | 04418-03060 | Rivet |
| 13 | 195-13-14111 | Gear |
| 14 | GB296-3206C3 | Double-row radial thrust ball bearing |
| 15 | 04064-03015 | Lock ring |
| 16 | 134-13-13400 | Ring |
| 17 | 134-13-13410 | Ring |
| 18 | 07000-72070 | O-ring |
| 19 | 195-13-13420 | Filter |
| 20 | 134-13-13430 | Rod |
| 21 | 01641-20608 | 6 washer |
| 22 | 01590-30607 | M6 nut |
| 23 | 04050-11212 | Split pin |
| 24 | 01010-81230 | M12*30 bolt |
| 25 | 175-13-23500 | Oil scavenging pump assembly |
| 26 | 175-13-23510 | Drive gear assembly |
| 27 | 175-13-23520 | Driven gear assembly |
| 28 | 175-13-23530 | Housing assembly |
| 29 | 01190-01011 | M10*1 threaded bushing |
| 30 | 175-13-23540 | Cover |
| 31 | 04020-00820 | Cylindrical pin |
| 32 | 01010-80835 | M8*35 bolt |
| 33 | 01602-20825 | 8 washer |
| 34 | 01641-20812 | 8 washer |
| 35 | 07000-72115 | O-ring |
| 36 | 01010-81235 | M12*35 bolt |
| 37 | 01641-21223 | 12 washer |
| 38 | 195-13-16100 | Bypass valve assembly |
| 39 | 195-13-16110 | Bypass valve housing |
| 40 | 195-13-16120 | Safety valve stem |
| 41 | 195-13-16131 | Safety valve spring |
| 42 | 195-13-16190 | Gasket |
| 43 | 195-13-16210 | Gasket |
| 44 | 195-13-16220 | Gasket |
| 45 | 195-13-16230 | Gasket |
| 46 | 01010-81290 | M12*90 bolt |
| 47 | 175-13-26401 | Pressure regulating valve assembly |
| 48 | 175-13-26410 | Pressure adjustment valve housing |
| 49 | 195-13-16450 | Threaded plug |
| 50 | 195-13-16420 | Pressure adjustment valve lever |
| 51 | 195-13-16430 | Spring |
| 52 | 195-13-16141 | Threaded plug |
| 53 | 07042-20108 | R1/8 threaded plug |
| 54 | 07000-72018 | O-ring |
| 55 | 07000-73045 | O-ring |
| 56 | 01010-81295 | M12*95 bolt |
| 57 | 175-11-11111 | 0 |
| 58 | 01010-81240 | M12*40 bolt |
