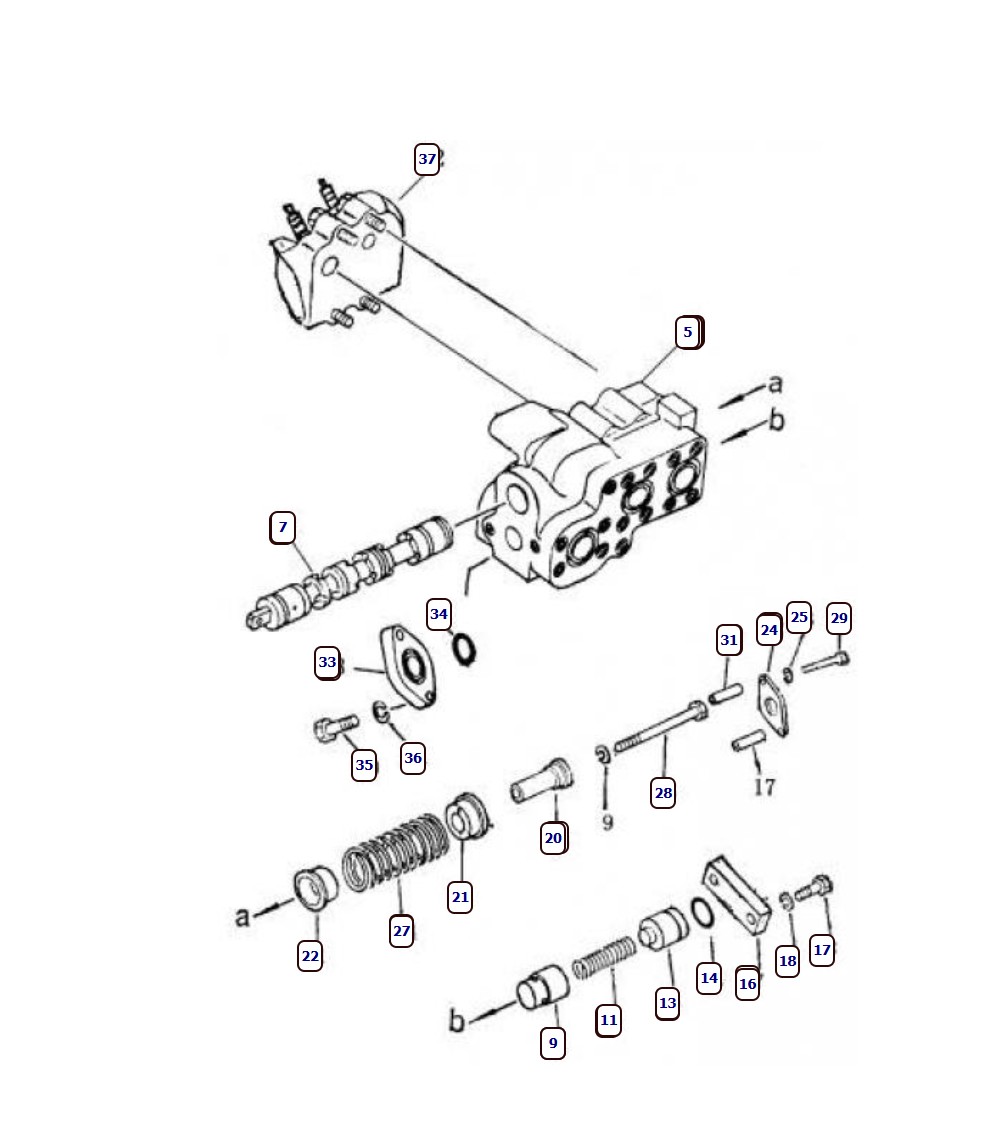

| ID | Part number | Name |
| 1 | (701-32-42001) | main valve block |
| 2 | (701-33-32112) | valve body |
| 3 | 16Y-60-11000 | ripper valve |
| 4 | 16Y-60-11100 | main valve |
| 5 | 16Y-60-11101 | valve body |
| 6 | (701-33-31430) | spool valve |
| 7 | 16Y-60-11102 | cylindrical spool |
| 8 | (701-33-31120) | valve |
| 9 | 16Y-60-11111 | valve |
| 10 | (701-33-31130) | spring |
| 11 | 16Y-60-11110 | spring |
| 12 | (701-33-31150) | seat |
| 13 | 16Y-60-11109 | support |
| 14 | 07000-13035 | O-ring |
| 15 | (701-33-31160) | gasket |
| 16 | 16Y-60-11108 | plate |
| 17 | 01010-51235 | Bolt M12x35 |
| 18 | 01602-21236 | Washer 12 |
| 19 | (701-33-46171) | nozzle |
| 20 | 16Y-60-11106 | bushing |
| 21 | (701-33-31380) | retaining ring |
| 22 | 16Y-60-11103 | plug |
| 23 | (701-33-46340) | plate |
| 24 | 16Y-60-11107 | plate |
| 25 | 01602-21030 | Washer 10 |
| 26 | (701-33-31191) | spring |
| 27 | 16Y-60-11104 | spring |
| 28 | 01010-51280 | Bolt M12x80 |
| 29 | 01010-51095 | Bolt M10x95 |
| 30 | (701-33-46350) | coupling |
| 31 | 16Y-60-11105 | pin |
| 32 | (701-33-31360) | plate |
| 33 | 16Y-60-11001 | block |
| 34 | 07000-13040 | O-ring |
| 35 | 01010-51440 | Bolt M14x40 |
| 36 | 01602-21442 | Washer 14 |
| 37 | 16Y-60-11010 | safety valve assembly |
