Brand & Model
Components

SHANTUI-SD16-D2711-10500

Product Description

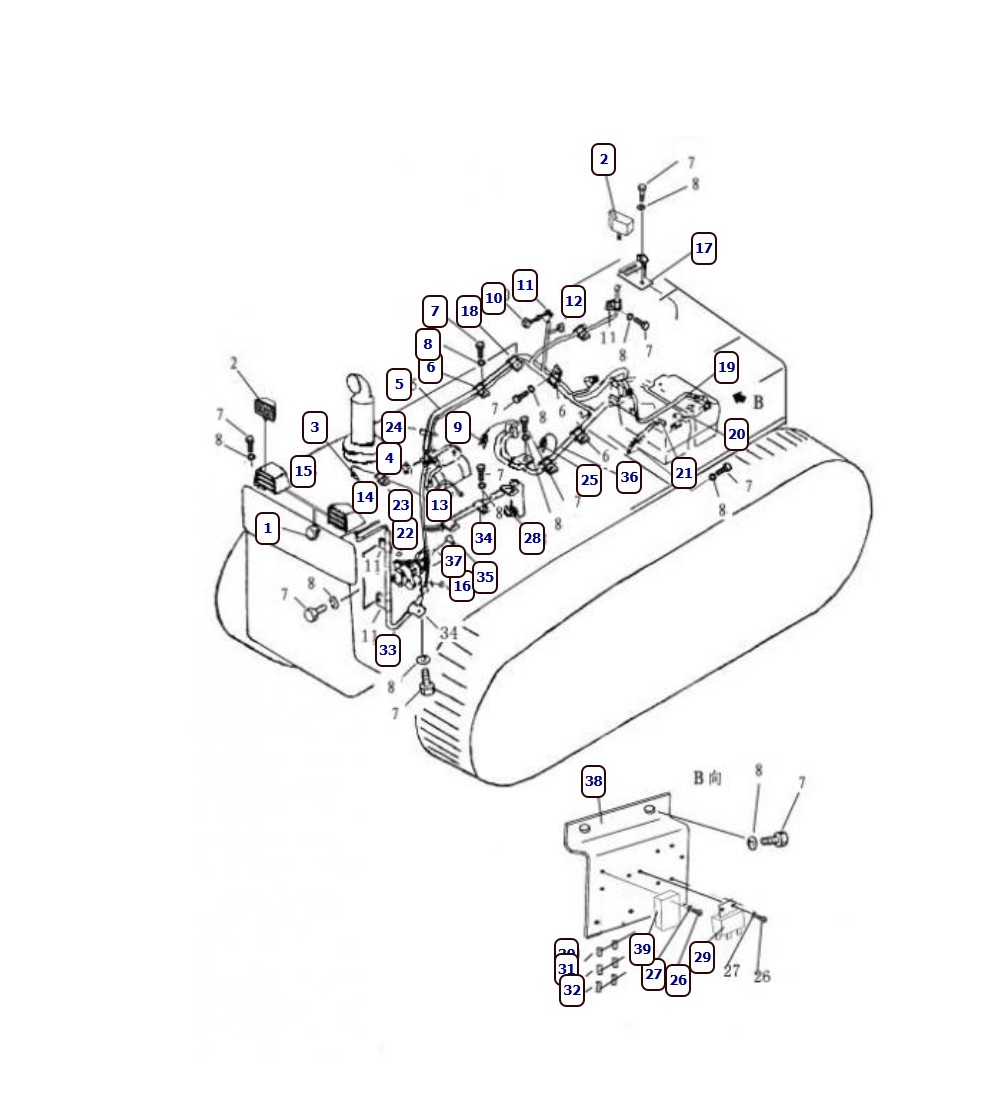

ID Part number Name
1 D2711-10500 Horn
2 D2401-07000 Working Light Headlamp
3 D2310-00000 Water Temperature Sensor
4 154-06-13130 Cover
5 16Y-07C-20000 Electrical Cable (Battery Relay – Engine)
6 08035-01010 Clamp
7 01010-51016 M10*16 Bolt
8 01643-31032 10 Washer
9 D2160-00800 Air Filter Clogging Indicator
10 D2510-00600 Horn Switch
11 08035-01014 Clamp
12 D2650-01100 Horn Relay
13 16Y-07C-09000 Engine Grounding
14 10Y-07B-06000 Headlight Cap (Left)
15 10Y-07B-09000 Headlight Cap (Right)
16 08038-00519 Protective Shield
17 16Y-07C-30000 Bracket
18 16Y-07C-25000 Plate
19 16Y-07C-03000 Battery+Power Cable
20 16Y-07C-02000 Battery+Power Cable
21 16Y-07C-01000 Battery-Related Cable
22 08038-00518 Protective Shield
23 08035-11510 Clamp
24 08034-20414 Hose Clamp
25 D2320-00000 Oil Temperature Sensor
26 01010-50814 M8*14 Bolt
27 01643-30823 8 Washer
28 D2300-00000 Oil Pressure Sensor
29 D2630-20000 Combo Relay
30 D2773-01500 Flat Fuse
31 D2773-02000 Flat Fuse
32 D2773-03000 Flat Fuse
33 16Y-07C-06000 Wire Harness
34 08035-02510 Clamp
35 08038-02027 Protective Shield
36 16Y-07C-04000 Wire Harness
37 16Y-07C-05000 Wire Harness
38 16Y-07C-00002 Plate
39 D2763-00900 Fuse Box
Brand & Model: SD16
Components: Electrical System
